High Frequency Welded Studded Finned Tubes (Base Tube ASTM A213 T9 + Carbon Steel Studs)
Discover premium high-frequency welded studded finned tubes engineered for superior heat transfer in demanding high-temperature and high-pressure environments. As an experienced foreign trade specialist with over a decade in supplying heat exchanger components to global clients in petrochemical, power generation, and refining industries, our company delivers reliable, high-performance solutions tailored to your project needs.
Product Overview: High Frequency Welded Studded Finned Tubes

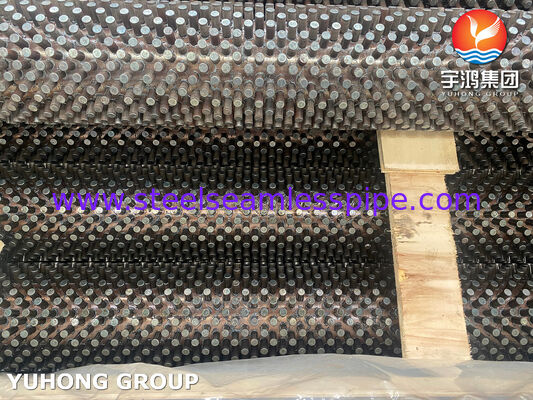

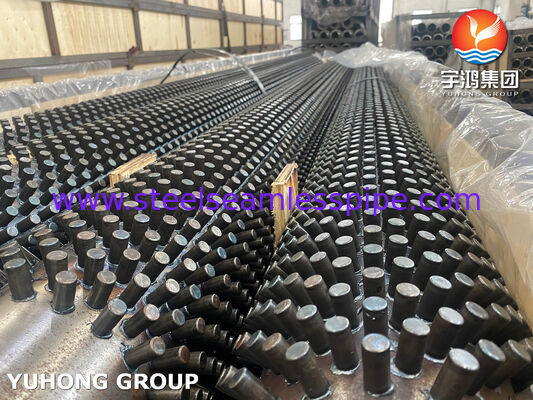

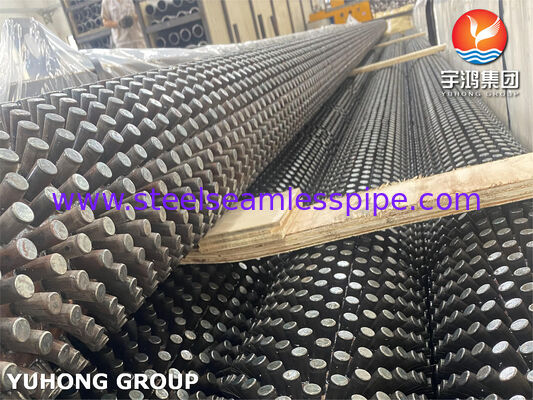

Studded finned tubes, also known as nailhead tubes or pin fin tubes, feature cylindrical studs (pins) resistance-welded or high-frequency welded to the outer surface of a base tube. This design significantly increases the heat transfer surface area—typically 2-3 times that of bare tubes—while maintaining excellent mechanical strength and fouling resistance.
Our ASTM A213 T9 base tube with carbon steel (CS) studs combination excels in high-temperature applications. The T9 alloy provides outstanding creep resistance, oxidation resistance, and high-temperature strength, while robust carbon steel studs enhance external heat transfer in convective sections.
Key Benefits at a Glance:
- Strong metallurgical bond via high-frequency or resistance welding.
- Excellent performance in dusty, erosive, or high-temperature gas streams.
- Customizable dimensions and stud patterns (square, hexagonal, or helical pitch).
Product Material Specifications

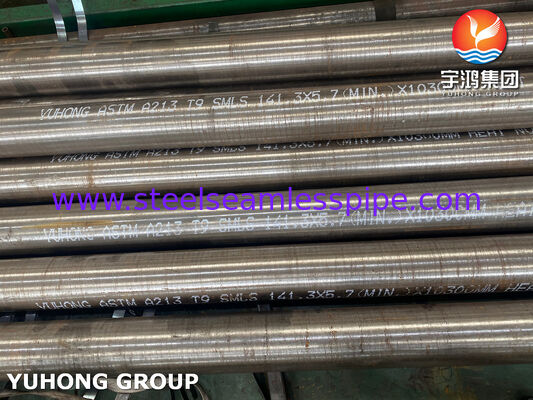

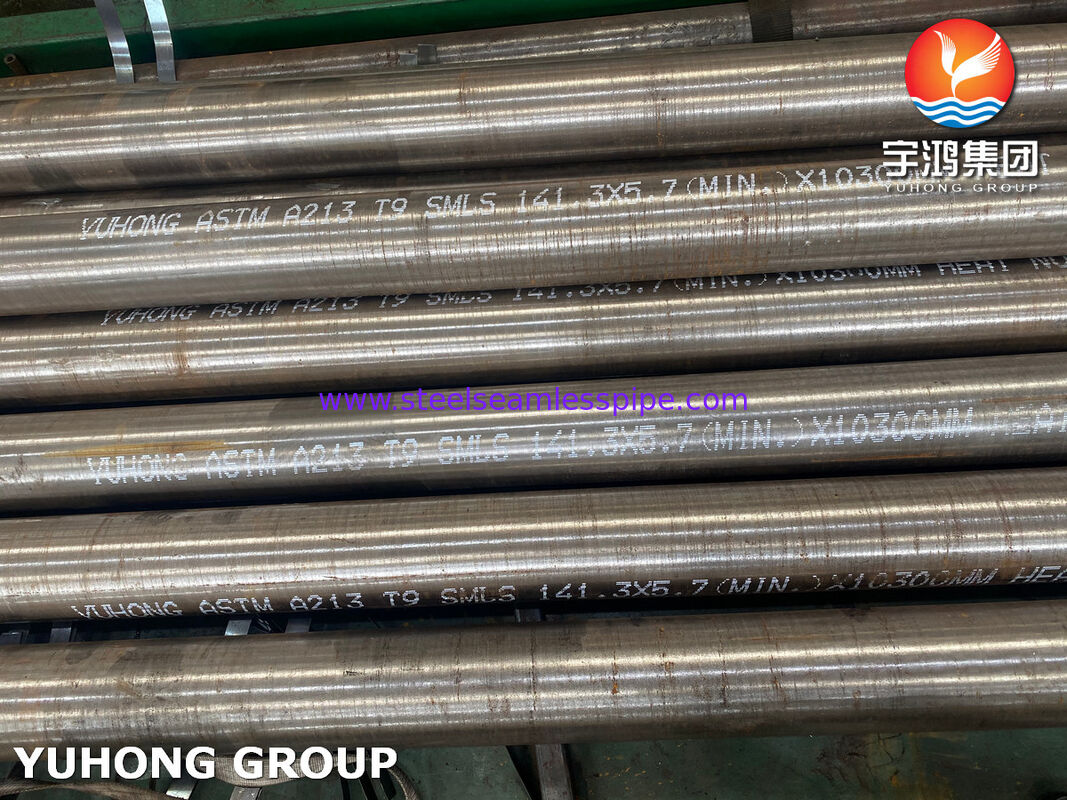

Base Tube Material: ASTM A213 T9 Seamless Ferritic Alloy Steel Tube (9Cr-1Mo).
Stud (Fin) Material: Carbon Steel (CS), typically equivalent to Q235B or low-carbon grades for optimal weldability and cost-effectiveness.
Chemical Composition
ASTM A213 T9 Base Tube (Weight %):
| Element |
Content (%) |
| C |
0.15 max |
| Mn |
0.30 - 0.60 |
| P |
0.025 max |
| S |
0.025 max |
| Si |
0.25 - 1.00 |
| Cr |
8.00 - 10.00 |
| Mo |
0.90 - 1.10 |
Carbon Steel Studs (Typical Low-Carbon Grade, e.g., Q235B equivalent):
- C: ≤0.20%
- Mn: 0.30-0.70%
- P: ≤0.045%
- S: ≤0.045%
- Si: ≤0.30% (approx.)
Mechanical properties for T9 include minimum tensile strength of 415 MPa and yield strength of 205 MPa, making it ideal for elevated temperatures.
Structure and Manufacturing Process
Components:
- Base Tube: Seamless alloy steel pipe providing pressure containment and corrosion/oxidation resistance.
- Studs (Fins): Discrete cylindrical or conical pins welded perpendicularly or at angles to the tube surface.
- Weld Joint: High-frequency resistance welding creates a strong, continuous metallurgical bond with minimal heat-affected zone, ensuring durability under thermal cycling and vibration.
Embedding/Welding Process: Studs are automatically welded using high-frequency or resistance methods at controlled pitch. Weld penetration is typically ≥1.5 mm with low bead height (≤1 mm) and no spatter. This process ensures robust attachment suitable for high-temperature service up to ~600°C (grade-dependent).
Dimensions and Tolerances
Typical manufacturing ranges (custom sizes available upon request):
| Parameter |
Range |
Tolerance Notes |
| Base Tube OD |
25 - 273 mm (1" - 10" NPS) |
±0.5% or per ASTM standards |
| Base Tube Wall Thickness |
3.5 - 28.6 mm |
±10% or as specified |
| Tube Length |
Up to 25,000 mm |
Straightness ≤2.5 mm/3m |
| Stud Diameter |
6 - 25.4 mm |
±0.3 mm |
| Stud Height |
10 - 35 mm |
±0.5 mm |
| Stud Pitch |
8 - 30 mm (square/hexagonal) |
±1 mm |
| Stud Density |
Custom (e.g., 120-400/m²) |
- |
Ovality, eccentricity, and other tolerances comply with ASTM A213 and client specifications. Hydrostatic testing (1.5× design pressure) is standard.
Performance Advantages
- Enhanced Heat Transfer: Increases surface area and thermal efficiency by 2-3× compared to bare tubes; ideal for low gas-side heat transfer coefficients.
- Fouling & Erosion Resistance: Discrete studs resist ash buildup and particle impingement better than continuous fins in dusty environments.
- High-Temperature Durability: T9 alloy offers excellent creep and oxidation resistance; strong welds withstand thermal cycling.
- Mechanical Robustness: Superior vibration and pressure resistance; suitable for high-dust applications like CFB boilers.
- Cost-Effectiveness: Combines premium base material with economical CS studs for optimal performance/value.
Detailed Application Fields
Our studded finned tubes are widely used in:
- Petrochemical & Refining: Process heaters, fired heaters, and convection sections in reformers and crackers.
- Power Generation: Boiler economizers, superheaters, air preheaters, and waste heat recovery boilers, especially coal/biomass-fired or CFB units.
- Oil & Gas: Heat exchangers in upstream/downstream operations and offshore platforms.
- Waste-to-Energy & Incinerators: Upper furnace sections handling high-sulphur or dusty flue gases.
- Chemical Processing: High-temperature reactors and heat recovery systems.
- Other: Cement kilns, glass furnaces, and marine boilers.
Why Choose Us? Our Advantages and Experience
With years of expertise exporting finned tubes to clients across Asia, Europe, the Middle East, and Americas, we stand out through:
- Strict Quality Control: Full material traceability (EN 10204 3.1 certificates), dimensional inspections, and weld testing.
- Customization Expertise: Flexible production for specific stud patterns, lengths, and material combinations.
- Competitive Lead Times & Pricing: Efficient manufacturing and global logistics ensure reliable delivery.
- Technical Support: Our team provides heat transfer calculations, material recommendations, and after-sales service.
- Proven Track Record: Successful projects in major refineries and power plants, with repeat orders highlighting product reliability and our commitment to customer satisfaction.
