Name: ASTM A179 Carbon Steel Fin Tube Extruded Type With Al1060 For Fin Fan Cooler
Brand: Yuhong Group Co.,Ltd
SKU: ASTM A179
Price: 100,000.00 USD
Availability: InStock

Yuhong Holding Group Co., LTD

Indonesian

Rumah

Produk

Tentang kita

Wisata pabrik

Kontrol kualitas

Hubungi kami

Berita perusahaan

Rumah Produk Tabung Sirip

ASTM A179 Carbon Steel Fin Tube Extruded Type With Al1060 For Fin Fan Cooler

Detail produk:

Tempat asal:	CINA
Nama merek:	Yuhong
Sertifikasi:	DNV, BV, PED, LR, ABS, TS, CCS
Nomor model:	ASTM A179

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	100kgs
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Case ply-wooden / besi / bundel dengan tutup plastik
Syarat-syarat pembayaran:	L/c, t/t
Menyediakan kemampuan:	1000 ton/bulan

Kontak

Semua produk

Pipa Seamless Stainless Steel (290)

Tabung Mulus Stainless Steel (277)

Pipa Stainless Steel Dupleks (127)

Tabung Baja Tahan Karat Dupleks (29)

Tabung jarum (107)

Tabung Sirip (631)

Penukar panas (17)

Tabung Penukar Panas (424)

Paket tabung penukar panas (37)

Lembar Tabung Penukar Panas (116)

penyekat penukar panas (36)

Pendingin udara (8)

Kapal Tekanan (4)

Pipa Las Stainless Steel (57)

Tabung Las Stainless Steel (114)

Nikel paduan pipa (261)

Tabung Paduan Nikel (79)

Tabung paduan tembaga (227)

Tabung Baja Paduan (184)

tabung titanium (10)

Bright Annealed Tube (153)

Tabung Boiler (145)

pemasangan baja (804)

Flensa Baja (590)

Yang lain (391)

Bagian Pelapis (7)

Detil Deskripsi produk

Kemasan:	Kasing ply-woonden dengan case besi	Kelas sirip:	AL 1060
Tinggi sirip:	15.875mm	Standar Tabung Dasar:	Asme SA179
Panjang Tabung Dasar:	disesuaikan	Produk:	Tabung Sirip
Aplikasi:	Penukar panas, pendingin udara	Jenis sirip:	Diekstrusi
Menyoroti:	ASTM A179 carbon steel fin tube , extruded fin tube for cooler , Al1060 fin fan cooler tube

ASTM A179 Carbon Steel Fin Tube Extruded Type With Al1060 For Fin Fan Cooler

Product Overview:

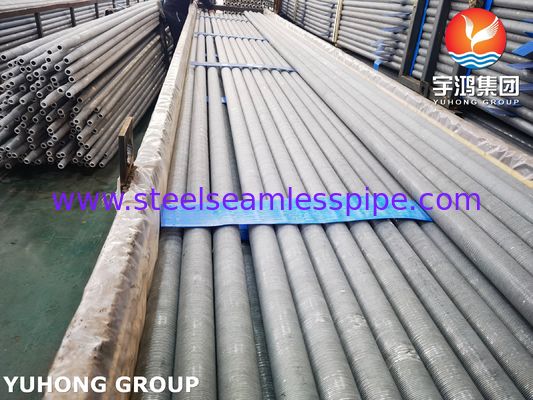

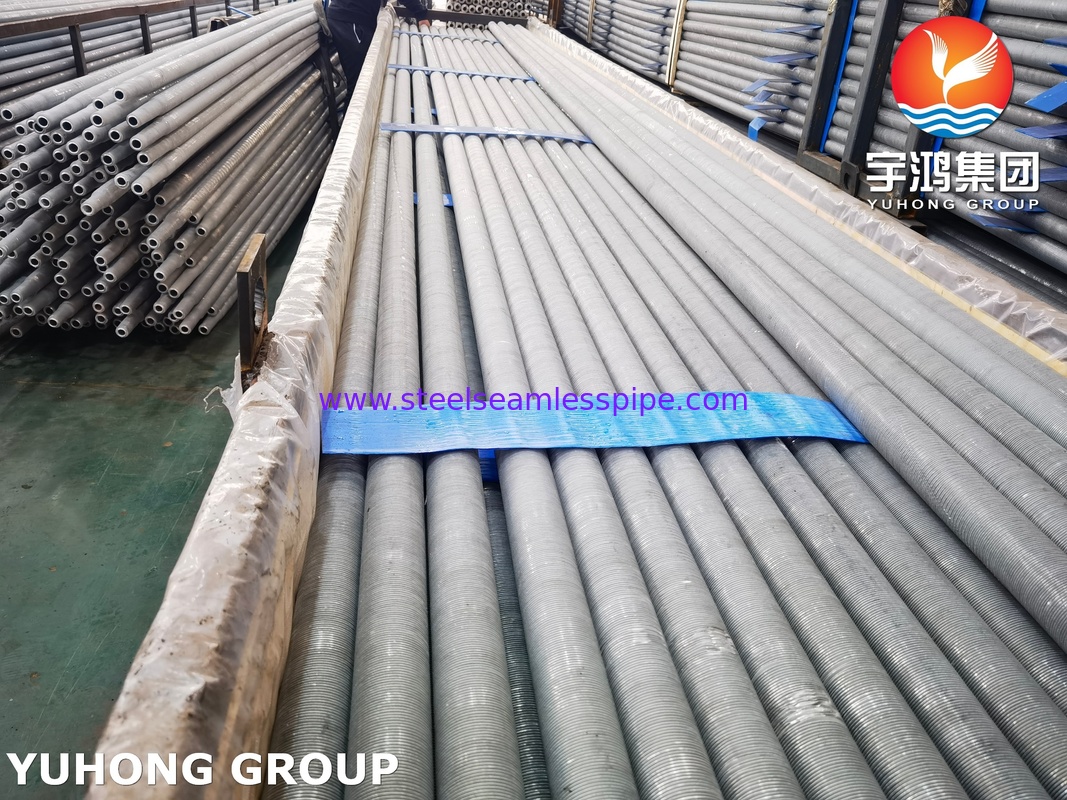

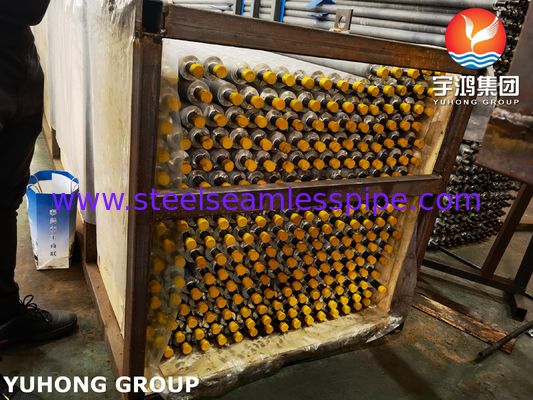

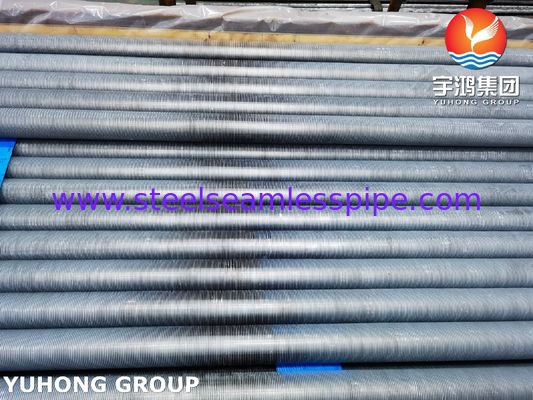

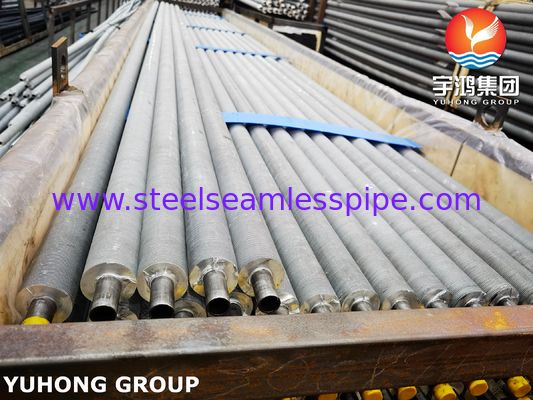

This fin tube consists of a seamless ASTM A179 carbon steel base tube with extruded Aluminium 1060 fins. The extrusion process forms an integral bond between the fins and the tube, ensuring excellent heat transfer performance, mechanical durability, and long-term reliability in air-cooled heat exchanger systems.

ASTM A192 / A192M : Seamless Carbon Steel Boiler Tubes for High-Pressure Service
ASTM A210 / A210M : Seamless Medium-Carbon Steel Boiler and Superheater Tubes
ASTM A179 / A179M : Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes

Tube Type:Seamless (Cold Drawn)
Ends:Plain ends or bevel ends.
Surface protection:black painting,anti-rust oil or varnish.

Detail:

General extrusion production capacity	General specifications of Extruded Fin Tubes/Embedded
Facility: 20 finning machines. Daily capacity up to 7600 meters. Extruded fins type: solid plain and serrated.	Tube OD: 12mm min.~50.8mm(2'') max. Tube Length: 32 meters max. Fin Height: 25.4 mm max. Fin Thickness: appr. 0.2/0.3/0.4mm/0.5mm/0.6mm Fin Pitch: 1.5mm min.

Chemical Composition ASTM A179 Carbon Steel (Base Tube)

Property	Content (wt%)
Carbon (C)	0.06 – 0.18
Manganese (Mn)	0.27 – 0.63
Phosphorus (P)	≤ 0.035
Sulfur (S)	≤ 0.035
Iron (Fe)	Balance

Aluminium 1060 (Fin Material)

Property	Content (wt%)
Aluminium (Al)	≥ 99.6
Copper (Cu)	≤ 0.05
Iron (Fe)	≤ 0.35
Silicon (Si)	≤ 0.25
Zinc (Zn)	≤ 0.05
Manganese (Mn)	≤ 0.03
Magnesium (Mg)	≤ 0.03
Titanium (Ti)	≤ 0.03
Others (Total)	≤ 0.15

Mechanical Properties ASTM A179 Carbon Steel (Base Tube)

Property	Value
Tensile Strength (MPa)	≥ 325
Yield Strength (MPa)	≥ 180
Elongation (%)	≥ 35

Aluminium 1060 (Fin Material)

Property	Value
Tensile Strength (MPa)	60 – 100
Yield Strength (MPa)	≥ 20
Elongation (%)	≥ 23
Brinell Hardness (HB)	~ 27

Applications

Fin Fan Coolers (Air Coolers) in refineries, petrochemical plants, and power plants
Air-cooled Heat Exchangers for oil, gas, and chemical industries
Process Cooling Systems in fertilizer, LNG, and hydrogen plants
Convection Cooling in power generation and industrial boilers

Advantages

Strong metallurgical bond between fins and tube, resistant to thermal cycling
High thermal conductivity from Aluminium 1060 fins
Robust carbon steel base tube (ASTM A179) for high strength and pressure resistance
Longer service life and easier cleaning compared with mechanical fin types (L/LL/KL/G)
Cost-effective solution for large-scale air cooling system
