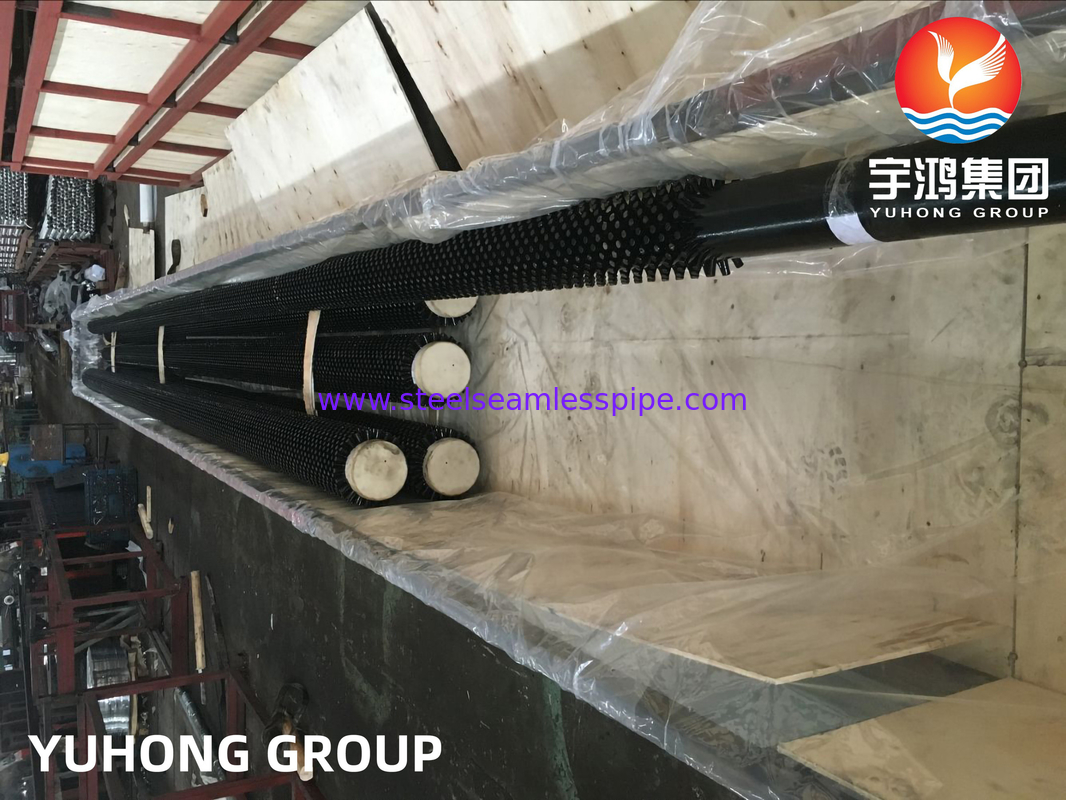

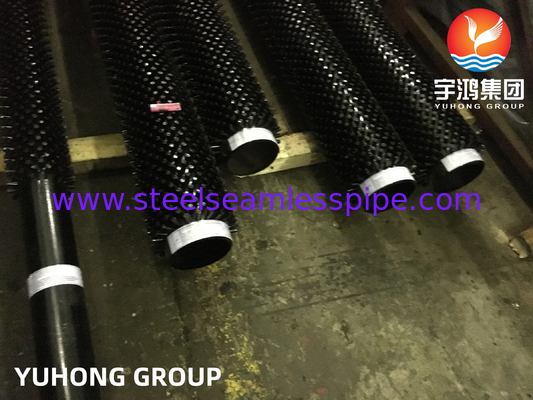

ASME SA335 P9 HFW Tube dengan Helical Studs OD 10 hingga 508mm untuk Reformer Convection Section

Detail produk:

Tempat asal:	Cina, Korea
Nama merek:	YUHONG
Sertifikasi:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Nomor model:	StuddedTube, Pin Tube, Oil Furnace Tube, Steam Furnace Tube, Reforming Tube

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1pc
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Kasing kayu lapis / Kasing Besi / Bundel dengan Tutup plastik
Waktu pengiriman:	10 hari->
Syarat-syarat pembayaran:	T/T, L/C
Menyediakan kemampuan:	1500 Ton per Bulan

Kontak

Kelas Tabung Dasar:

ASME SA335 P9, ASTM A335 P9, ASME SA213 T9, ASTM A213 T9

Kelas Bahan Pejantan:

1Cr13, 2Cr13, 3Cr13, 11Cr, 13Cr, SS409, SS410, SS304, Baja Karbon, Baja Paduan

Pejantan Tinggi:

1/2 inci (12,7 mm), 5/8 inci （15,875 mm）, 3/4 inci (19,05 mm), 7/8 inci (22,23 mm), 1 inci (25,4 mm)

Pejantan Dia.:

12.7mm, 15.88mm,...

Jenis sirip:

Sirip Padat, Pengelasan Frekuensi Tinggi, HFW, ..

Aplikasi:

Tabung Tungku Minyak, Tabung Tungku Uap, Tabung Reformasi

Warna:

Hitam

Bahan:

Dicetak

Menyoroti:

Pipa baja paduan tabung bertopeng

Steam Reforming Furnace Alloy Steel Pipe

SS410 Pipa baja paduan

Grade Pipa Dasar:

SATM A106 Gr. A, Gr. B , Gr. C , 20#, P11, P22, P5, P9, P91

Standar:

ASTM A213, ASTM A312, ASTM A335 , ASTM A790 , ASTM A106, ASME SA213, ASME SA312, ASME SA376, ASME SA790 , ASME SA106, ASME SA335

Grade Material Stud:

1Cr13, 2Cr13, 3Cr13, 11Cr, 13Cr, SS409, SS410 , SS304 , Baja Karbon , Baja Paduan

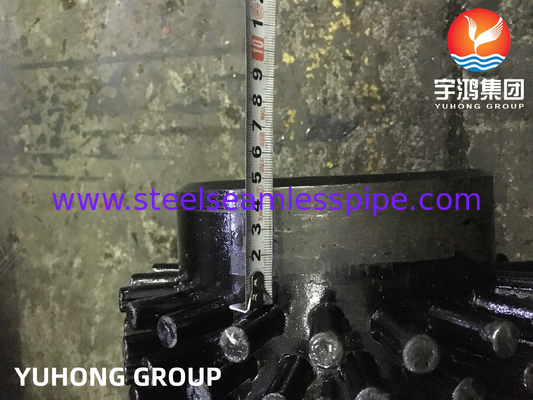

Tinggi Stud:

1/2 inci (12.7mm), 5/8 inci (15.875mm), 3/4 inci (19.05mm), 7/8 inci (22.23mm), 1 inci (25.4mm),...

Dia. Stud:

12.7mm, 15.88mm ,...

Tipe Sirip:

Sirip Padat , Pengelasan Frekuensi Tinggi , HFW, ..

Pipa Sirip
Bagian Pipa Dasar			Bagian Sirip
Spesifikasi	Grade Material	Ukuran Utama	Grade Material	Tipe Sirip	Tinggi Sirip	Ketebalan Sirip	Jumlah Sirip	Dia. Sirip	Panjang Telanjang
ASTM A213 ; ASME SA213; ASTM A249; ASME SA249; ASTM A269; ASME SA269; ASTM A312; ASME SA312; ASTM A376; ASME SA376; ASTM A789; ASME SA789; ASTM A790; ASME SA790	TP304, TP304L, TP304H, TP310S, TP310H, TP316L, TP317L, TP321, TP321H, TP347, TP347H , S31803, S32205, S32750, S32760	Ukuran Pipa: 15.875 X 1.65; 15.875 X 2.11; 15.875 X 2.77; 19.05 X 1.65; 19.05 X 2.11; 19.05 X 2.77; 25.4 X 2.11; 25.4 X 2.77; 25.4 X 3.05; 25.4 X 3.4; 31.75 X 2.11; 31.75 X 2.77; 31.75 X 3.05; 31.75 X 3.4; 38.1 X 2.11; 38.1 X 2.77; 38.1 X 3.05; 38.1 X 3.4; 44.45 X 2.11; 44.45 X 2.77; 44.45 X 3.05; 44.45 X 3.4; 44.45 X 3.81; 44.45 X 4.57; 50.8 X 2.11; 50.8 X 2.77; 50.8 X 3.05; 50.8 X 3.4; 50.8 X 3.81; 50.8 X 4.57; 57.15 X 2.11; 57.15 X 2.77; 57.15 X 3.05; 57.15 X 3.4; 57.15 X 3.81; 57.15 X 4.57; 63.5 X 2.11; 63.5 X 2.77; 63.5 X 3.05; 63.5 X 3.4; 63.5 X 3.81; 63.5 X 4.57; Ukuran Pipa: 2 1/2" SCH40 (73.03 X 5.16); 2 1/2" SCH80 (73.03 X 7.01); 3" SCH40 (88.9 X 5.49); 3" SCH40 (88.9 X 7.62); 3 1/2" SCH40 (101.6 X 5.74); 3 1/2" SCH80 (101.6 X 8.18); 4" SCH40 (114.3 X 6.02); 4" SCH80 (114.3 X 8.56); 5" SCH40 (141.3 X 6.55); 5" SCH80 (141.3 X 9.27); 6" SCH40 (168.3 X 7.11); 6" SCH80 (168.3 X 10.97); 8" SCH40 (219.1 X 8.18); 8" SCH80 (219.1 X 12.7); Panjang Maks.: 25M/PC; ukuran lain tergantung permintaan pelanggan	Baja Tahan Karat: SS304, SS304L, SS316L, SS317L, SS347, SS310; SS409 (1CR12), SS410(1Cr13); Baja Karbon(CS) , Baja Paduan: ASTM A387 Gr.A, Gr.B, Gr.C; Aluminium ASTM A209 / ASME SA209 AL1060, Gr.6061; ASME SA210/ ASTM A210 AL1060 , AL1100, Gr.6061, Gr.6063, ASTM A221/ ASME SA221 AL 1060 , Gr.6061, Gr.6063 Baja Paduan: P11, P22, P5, P9	Sirip Padat : Pengelasan Frekuensi Tinggi(HFW), Pipa Sirip Bergerigi, Pipa Berpaku / Pipa Pin, Pipa Sirip Persegi, Pipa Sirip Tipe H, Pipa Sirip tipe HH; Tertanam : Pipa Sirip Tipe G; Lilitan: L, LL, KL ; Ekstrusi; Pipa Sirip Ulir ; Pipa Sirip Rendah; Pipa Sirip Bergelombang; Pipa Bambu; Pipa Sirip U bend	1.6mm ~60mm	0.2mm~3.0mm	Tergantung permintaan klien	12.7mm~25.4mm	40mm~permintaan klien
EN10216-5; EN10217-7; DIN 17456; DIN17457; DIN17458	1.4301,1.4305, 1.4306, 1.4307, 1.4571,1.4401, 1.4404, 1.4541, 1.4948, 1.4550, 1.4912, 1.4845, 1.4462, 1.4539, 1.4438, 1.4501
ASTM A335; ASME SA335; ASTM A213; ASME SA213	T1, T11, T12, T22, T23, T5, T9, T91, T92, P1, P11, P12, P22, P23, P5, P9, P91, P92
ASTM A53; ASTM A106, ASME SA106	GR.A, GR.B, GR.C
ASTM A178; ASME SA178; ASTM A179, ASME SA179; ASTM A192; ASME SA192; ASTM A209; ASME SA209; ASTM A210; ASME SA210; ASTM A 214; ASME SA214; ASTM A333; ASME SA333	Gr.A, Gr.B, Gr.C, A179, A192, T1a, T1b Gr.A1, Gr.1, Gr.3, Gr.6
ASTM B161; ASME SB161; ASTM B163; ASME SB163; ASTM B164; ASME SB164; ASTM B165; ASME SB165; ASTM B167; ASME SB167; ASTM B407; ASME SB407; ASTM B444; ASME SB444; ASTM B622; ASME SB622; ASTM B388; ASME SB388	Grade:Hestalloy:C-276, C-4, C-22, C-2000, X, B-2, B-3, G-30, G-35. Monel:400,401, 404, R-405, K500. Inconel:600, 601, 617, 625, 690, 718, 740, X-750. Incoloy:800, 800H, 800HT, 825, 840. Nikel Murni:Ni-200, Ni-201, Ni-270. Paduan NS:Ns 1101, NS1102, NS1103,NS3105. Titanium : Gr.2 , Gr.5, Gr.7, Gr.9 ;
