EN1092-1 Type 01A Plate Flange A182 F316L Stainless Steel Flange Flat Face Flanges

EN1092-1 Type 01A Plate Flange A182 F316L Stainless Steel Flange Flat Face Flanges

  • EN1092-1 Type 01A Plate Flange A182 F316L Stainless Steel Flange Flat Face Flanges
  • EN1092-1 Type 01A Plate Flange A182 F316L Stainless Steel Flange Flat Face Flanges
  • EN1092-1 Type 01A Plate Flange A182 F316L Stainless Steel Flange Flat Face Flanges
  • EN1092-1 Type 01A Plate Flange A182 F316L Stainless Steel Flange Flat Face Flanges
EN1092-1 Type 01A Plate Flange A182 F316L Stainless Steel Flange Flat Face Flanges
Detail produk:
Tempat asal: Cina
Nama merek: YUHONG
Sertifikasi: ISO, API , ABS, DNV, GL , LR, NK
Nomor model: Flensa Pelat Baja Tahan Karat EN1092-1 F316L
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 buah
Kemasan rincian: Kasing / Pallet Kayu Lapis
Waktu pengiriman: 7 hari
Syarat-syarat pembayaran: L/C,T/T
Kontak
Semua produk
Pipa Seamless Stainless Steel (327)
Tabung Mulus Stainless Steel (322)
Pipa Stainless Steel Dupleks (134)
Tabung Baja Tahan Karat Dupleks (36)
Tabung jarum (152)
Tabung Sirip (698)
Penukar panas (24)
Tabung Penukar Panas (456)
Paket tabung penukar panas (46)
Lembar Tabung Penukar Panas (124)
penyekat penukar panas (39)
Pendingin udara (10)
Kapal Tekanan (4)
Pipa Las Stainless Steel (61)
Tabung Las Stainless Steel (130)
Nikel paduan pipa (271)
Tabung Paduan Nikel (96)
Tabung paduan tembaga (247)
Tabung Baja Paduan (208)
tabung titanium (20)
Bright Annealed Tube (173)
Tabung Boiler (151)
pemasangan baja (855)
Flensa Baja (655)
Yang lain (404)
Bagian Pelapis (8)
Detil Deskripsi produk
Nama Produk: Flensa stainless steel Standar: EN1092-1 / ASTM A182 / ASME SA182
Bahan: F316L Kelas: 150#, 300#, 400#, 600#, 900#, 1500#, 2500#
Jenis: Pl, wn, jadi, bl, sw, lwn Menghadapi: RF, ff, rtj
Aplikasi: Minyak bumi, bahan kimia, dll, perlengkapan dan koneksi, bir
Menyoroti:

EN1092-1 Type 01A stainless steel flange

,

A182 F316L flat face flange

,

plate flange with flat face

EN1092-1 Type 01A Flat Faced Plate Flange F316L Stainless Steel Flange

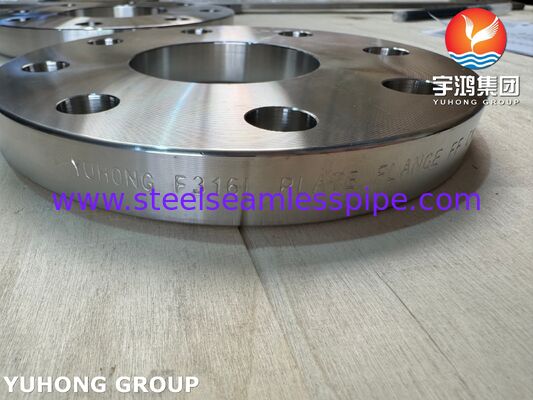

An EN 1092-1 Type 01A Flat Face Plate Flange made of ASTM A182 F316L stainless steel is a flat, circular steel disc with bolt holes but no hub or raised face. It is designed to be welded directly to a pipe or fitting and uses a full-face gasket (flat sealing surface). The material F316L is a low-carbon, molybdenum-bearing austenitic stainless steel that provides excellent corrosion resistance, especially against chlorides and acids, and resists sensitization after welding.





​EN 1092-1 & ASME B16.5 / B16.47 Flange Which One to Use?

  • EN 1092-1: Requires standard number, type, DN, PN, material, manufacturer, heat number.
  • ASME B16.5: Requires manufacturer name or trademark, material designation (e.g., A182 F316L), class, NPS, schedule (if applicable), B16.5, and heat number.
Scenario Recommendation
Project in Europe, Asia, or spec calls for PN Use EN 1092-1
Project in North America, or spec calls for Class Use ASME B16.5 / B16.47
Connecting to existing flanges Must match the standard – do not mix EN and ASME directly
International oil & gas (offshore) Often ASME, but some European operators accept EN with PN/Class conversion

* Never directly bolt an EN 1092-1 flange to an ASME B16.5 flange. Bolt circle diameters, hole sizes, and facing dimensions are different. Use a proper adapter flange or a custom-made transition piece designed to both standards.





Equivalent Materials of EN1092-1 F316L Stainless Steel Plate Flange

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 316L 1.4404 S31603 SUS 316L 316S11 03Ch17N14M3  Z3CND17‐11‐02 X2CrNiMo17-12-2





Chemical Composition % of EN1092-1 F316L Stainless Steel Plate Flange

SS UNS C MN P S SI CR NI MO NB TI
F316L S31603 0.030 2.00 0.045 0.030 1.00 16.0-18.0 10.0-15.0 2.0-3.0 --- ---





Application

  • Low-pressure piping systems (water, chemicals, oil, gas) where flat face is required (e.g., connecting to plastic, FRP, or cast iron flanges).
  • Marine and offshore environments – F316L resists pitting and crevice corrosion from seawater.
  • Pharmaceutical and food processing – easy to clean, no crevices (when full-face gasket used).
  • Heat exchanger and vessel nozzles with flat face gaskets.
  • Wastewater treatment – resistance to chlorides and mild acids.





EN1092-1 Type 01A Plate Flange A182 F316L Stainless Steel Flange Flat Face Flanges 0
