A240 F904L STEEL FLANGE SOFF 150# AWWA C207 Table 2 Ciass D RING FLANGE

Detail produk:

Tempat asal:	Tiongkok
Nama merek:	YUHONG
Sertifikasi:	API , ABS, DNV, GL , LR, NK
Nomor model:	AWWA C207 TABEL 2 KELAS D

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Kemasan rincian:	KASUS PLYWOOD, PALLET
Waktu pengiriman:	7 hari
Syarat-syarat pembayaran:	L/C, T/T

Kontak

Semua produk

Pipa Seamless Stainless Steel (308)

Tabung Mulus Stainless Steel (297)

Pipa Stainless Steel Dupleks (132)

Tabung Baja Tahan Karat Dupleks (33)

Tabung jarum (134)

Tabung Sirip (672)

Penukar panas (20)

Tabung Penukar Panas (443)

Paket tabung penukar panas (40)

Lembar Tabung Penukar Panas (117)

penyekat penukar panas (37)

Pendingin udara (9)

Kapal Tekanan (4)

Pipa Las Stainless Steel (58)

Tabung Las Stainless Steel (120)

Nikel paduan pipa (266)

Tabung Paduan Nikel (92)

Tabung paduan tembaga (240)

Tabung Baja Paduan (204)

tabung titanium (15)

Bright Annealed Tube (155)

Tabung Boiler (151)

pemasangan baja (826)

Flensa Baja (615)

Yang lain (401)

Bagian Pelapis (7)

Detil Deskripsi produk

Ukuran:

1/2"~24"

Menghadapi:

RF(raised Face);FF(flat Face);RTJ(ring Type Joint); RF (Wajah terangkat); FF (Wajah datar)

Kelas:

86 PSI, 175-150 PSI

Standar:

ANSI/AWWA C207

Menyoroti:

A240 F904L steel flange

150# AWWA C207 ring flange

Table 2 Class D steel flange

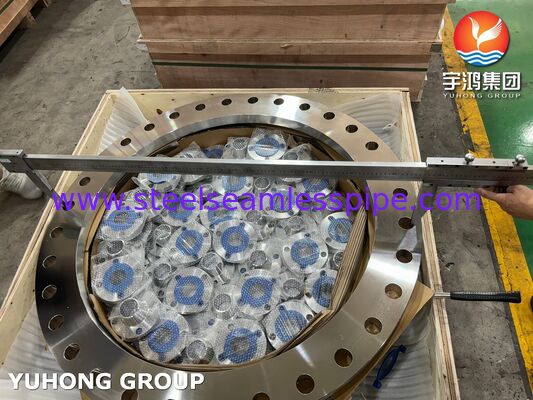

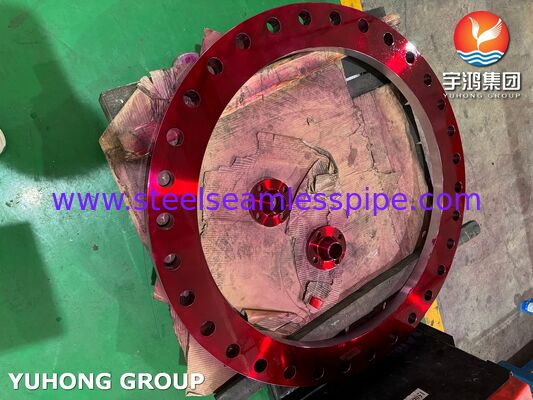

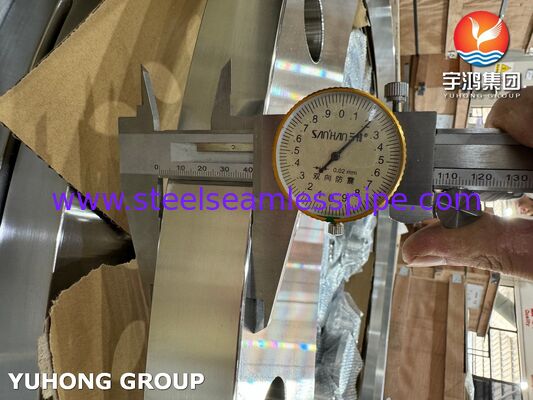

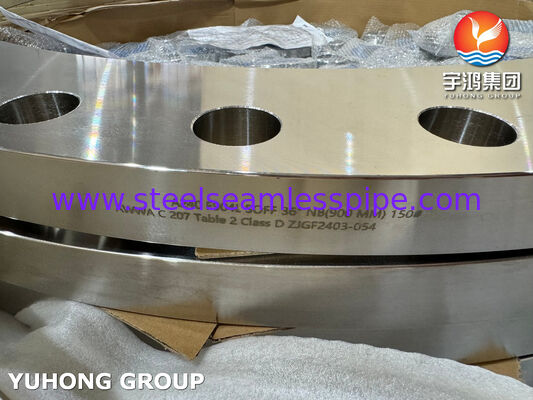

A240 F904L STEEL FLANGE SOFF 150# AWWA C207 Table 2 Ciass D RING FLANGE

An AWWA C207 Ring Flange is a specific type of steel pipe flange standard defined by the American Water Works Association (AWWA) Standard C207, titled "Steel Pipe Flanges for Waterworks Service." It is designed to connect sections of pipe, valves, pumps, and other equipment in municipal water, wastewater, and fire protection systems.

Typical Applications:

Potable Water Transmission Mains
Water Treatment Plants
Wastewater Treatment and Collection Systems
Fire Protection Sprinkler Systems (especially the main supply lines)
Pump Stations
Connecting to large valves and hydrants

Type	Ring flange
Standard	AWWA C207
Size	1/2” - 80”
Pressure	150#-2500#
Steel Grade	F904L
Surface	Bright
Test	Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Blow Test, Impact Test), Exterior Size Inspection
Mill Test Certificate	EN 10204/3.1B

A240 F904L STEEL FLANGE SOFF 150# AWWA C207 Table 2 Ciass D RING FLANGE 0

ASTM A240 F904L Flange Chemical Compostion and Properties

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	Cu
904L	Min. Max.	- 0.02	- 2	- 1	- 0.045	- 0.035	19 23	4 5	23 28	1 2

ASTM A240 F904L Flange Mechanical and Physical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B)	Brinell (HB)
904L	490	220	36	70-90 typical	150
