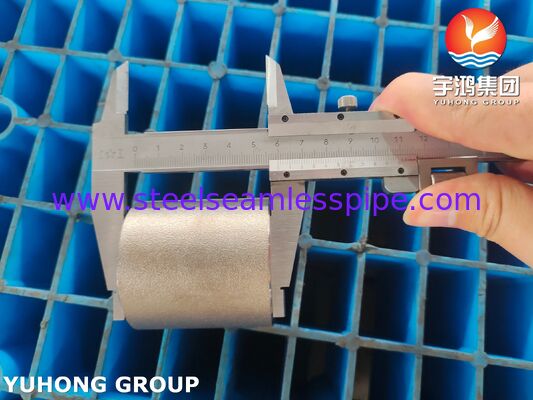

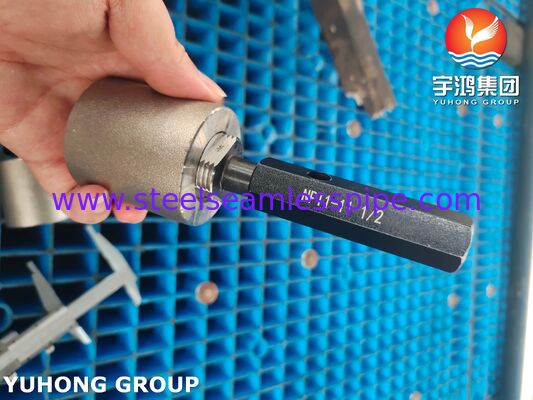

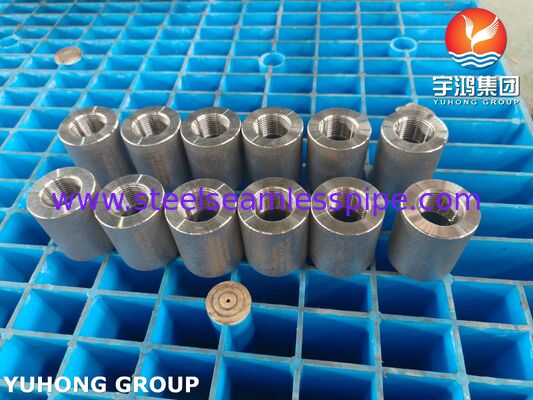

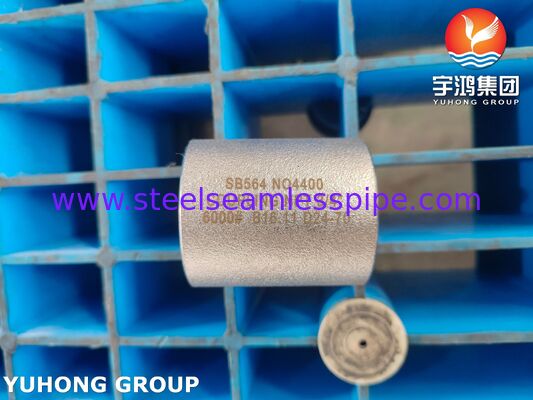

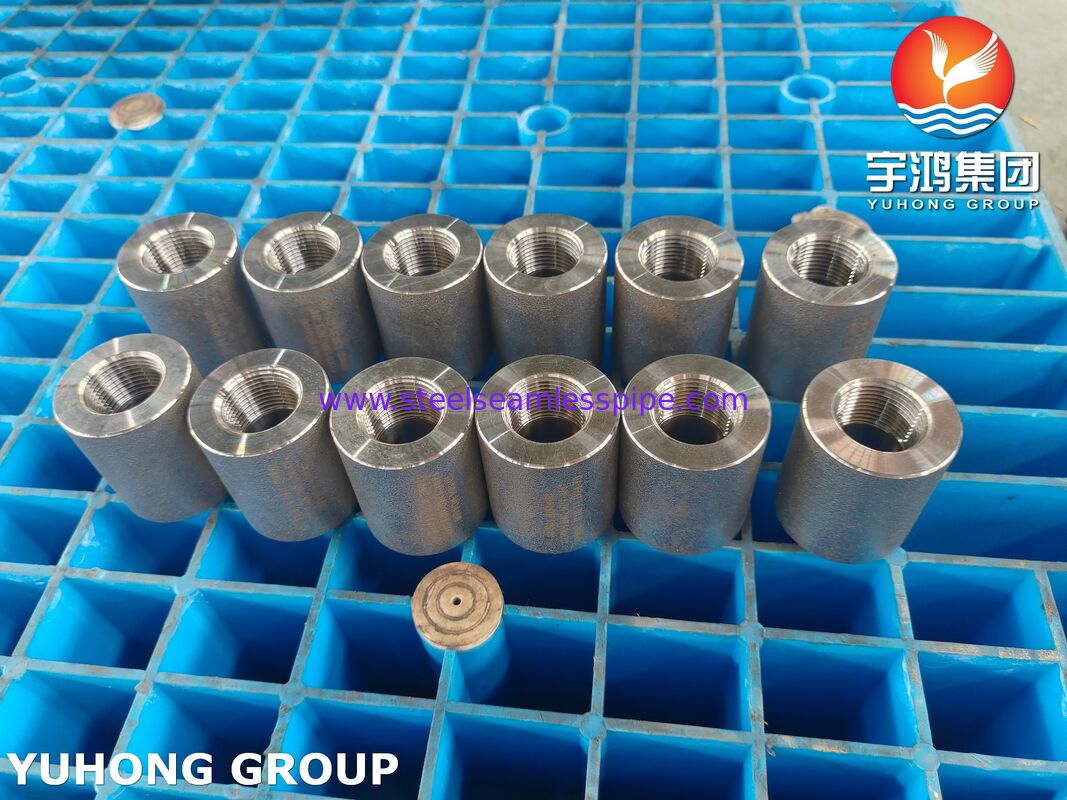

Nickel Alloy Forged Pipe Fitting ASME SB564 UNS N04400 Monel 400 Thread Coupling

Detail produk:

Tempat asal:	Cina
Nama merek:	YUHONG
Sertifikasi:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Nomor model:	Kopling Tempa ASME SB564 Monel 400

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Kemasan rincian:	KASUS PLYWOOD, PALLET
Waktu pengiriman:	7 hari
Syarat-syarat pembayaran:	L/C, T/T

Kontak

Semua produk

Pipa Seamless Stainless Steel (308)

Tabung Mulus Stainless Steel (297)

Pipa Stainless Steel Dupleks (132)

Tabung Baja Tahan Karat Dupleks (33)

Tabung jarum (134)

Tabung Sirip (672)

Penukar panas (20)

Tabung Penukar Panas (443)

Paket tabung penukar panas (40)

Lembar Tabung Penukar Panas (117)

penyekat penukar panas (37)

Pendingin udara (9)

Kapal Tekanan (4)

Pipa Las Stainless Steel (58)

Tabung Las Stainless Steel (120)

Nikel paduan pipa (266)

Tabung Paduan Nikel (92)

Tabung paduan tembaga (240)

Tabung Baja Paduan (204)

tabung titanium (15)

Bright Annealed Tube (155)

Tabung Boiler (151)

pemasangan baja (826)

Flensa Baja (615)

Yang lain (401)

Bagian Pelapis (7)

Detil Deskripsi produk

Nama Produk:	Kopel	Spesifikasi:	ASTM B564/ASME SB564 Monel 400
Dimensi:	Standar ANSI/ASME B16.11, MSS SP 97, MSS SP 83, MSS SP 95, MSS SP 97	Ukuran:	1/8" sampai 4"
Kelas:	3000#,6000#,9000#	Pola:	Weldolet, socketolet, threadolet, nipolet, latrolet, elbowolet
Aplikasi:	Industri, Gas Alam , Minyak Bumi, Pipa Gas Dan Minyak, Kimia
Menyoroti:	Nickel Alloy forged pipe fitting , Monel 400 thread coupling , ASME SB564 pipe fitting

ASTM B564 Forged Pipe Fitting Monel 400 / UNS U04400 Nickel Alloy Thread Coupling

A forged thread coupling is a type of pipe fitting manufactured through the forging process, featuring internal threads (NPT) at both ends. Its primary function is to connect two pieces of externally threaded pipe of the same nominal size in a straight run, providing a pressure-tight mechanical joint without welding.

In summary, a forged thread coupling is a robust, practical solution for many piping connections where welding is not desired or practical. Its performance hinges on correct material selection, proper installation, and appropriate application within its design limitations.

Specification

Type	Thread Coupling, Thread Half Coupling, Reducing Coupling
Specification	ASTM B564/ASME SB564 Monel 400
Other Pattern	Weldolet, socketolet, threadolet, nipolet, latrolet, elbowolet
Size	1/8" - 4"
Class	3000#, 6000#, 9000#
Dimension	ANSI/ASME B16.11, MSS SP 97, MSS SP 83, MSS SP 95, MSS SP 97
Application	Industry, Natural Gas , Petroleum, Gas And Oil Pipes, Chemical

ASME SB564 Monel 400 Nickel Alloy Forged Fitings Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni
Monel 400	0.30 max	2.00 max	0.50 max	0.024 max	28.00 – 34.00	2.50 max	63.00 min

ASME SB564 Monel 400 Nickel Alloy Forged Fitings Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Monel 400	8.8 g/cm3	1350 °C (2460 °F)	Psi – 80,000 , MPa – 550	Psi – 35,000 , MPa – 240	40 %

Common Materials of forged fittings

Carbon Steel: ASTM/ASME A105 (general service)
Stainless Steel: ASTM/ASME A182 F304/F304L, F316/F316L (corrosion resistance)
Alloy Steel: ASTM/ASME A182 F11, F22 (high-temperature service)
Nickel Alloys: Monel 400 (SB564), Inconel 600/625, Hastelloy C276 (severe corrosion/heat)
Duplex/Super Duplex Stainless: A182 F51/F53/F55 (high strength & chloride resistance)
