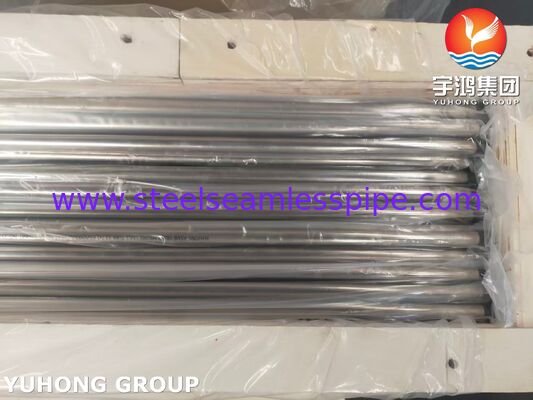

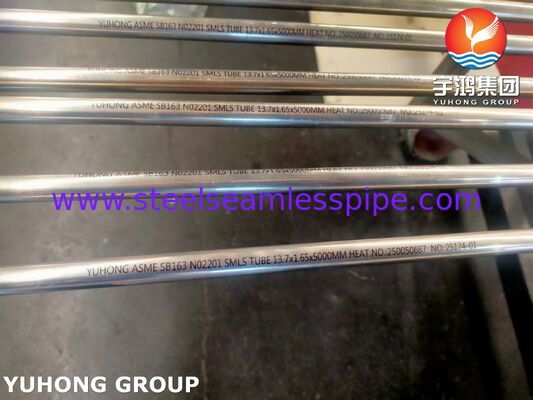

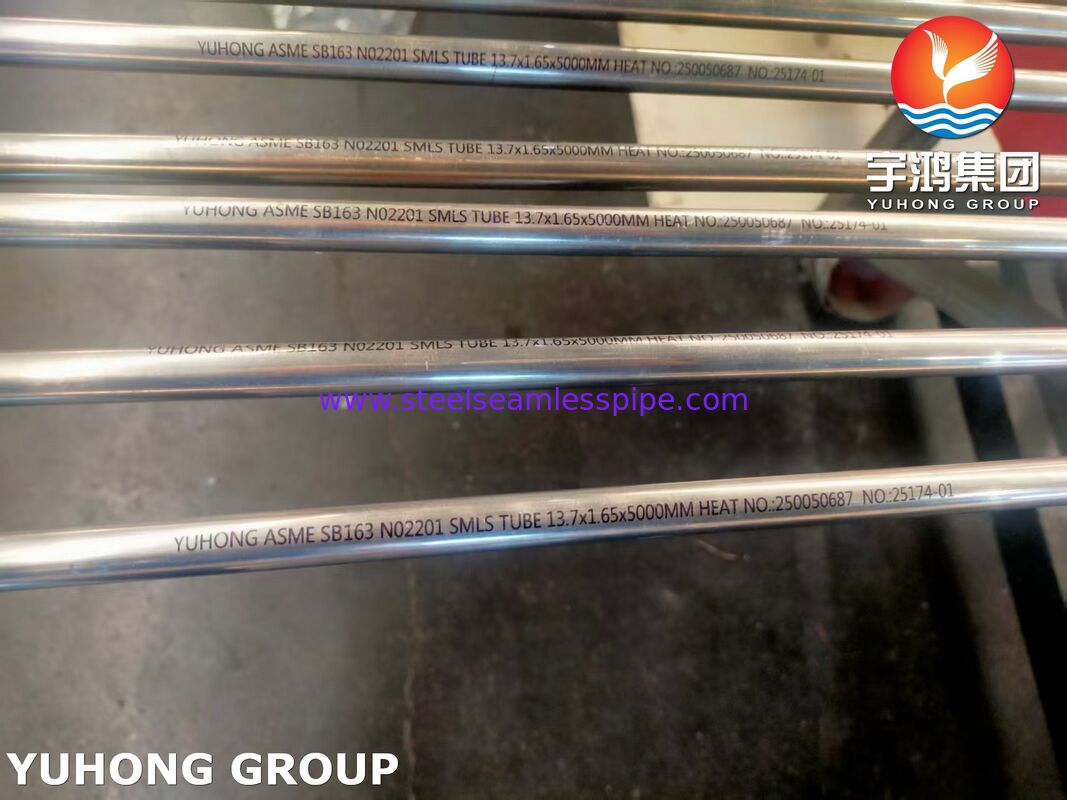

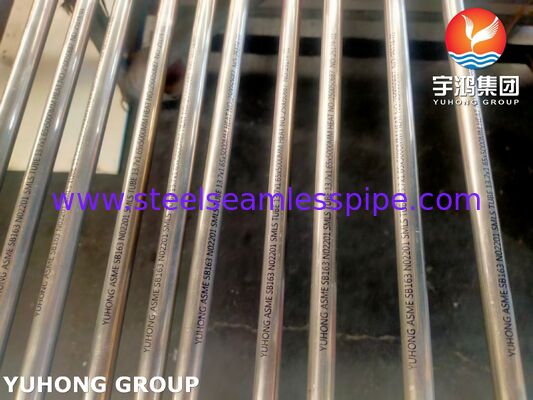

ASME SB163 N02201 Seamless Tube for Heat Exchangers & Condensers

ASME SB163 N02201 Seamless Tube for Heat Exchangers & Condensers

  • ASME SB163 N02201 Seamless Tube for Heat Exchangers & Condensers
  • ASME SB163 N02201 Seamless Tube for Heat Exchangers & Condensers
  • ASME SB163 N02201 Seamless Tube for Heat Exchangers & Condensers
  • ASME SB163 N02201 Seamless Tube for Heat Exchangers & Condensers
ASME SB163 N02201 Seamless Tube for Heat Exchangers & Condensers
Detail produk:
Tempat asal: Tiongkok
Nama merek: YUHONG
Sertifikasi: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Nomor model: ASME SB163 N02201
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 100kgs
Harga: Dapat dinegosiasikan
Kemasan rincian: Ply-wooden Case / Iron Case / Bundel dengan Tutup plastik / Woven Case
Waktu pengiriman: Tergantung pada kuantitas
Syarat-syarat pembayaran: , L/c, t/t
Menyediakan kemampuan: 1000 ton per bulan
Kontak
Semua produk
Pipa Seamless Stainless Steel (308)
Tabung Mulus Stainless Steel (297)
Pipa Stainless Steel Dupleks (132)
Tabung Baja Tahan Karat Dupleks (33)
Tabung jarum (134)
Tabung Sirip (672)
Penukar panas (20)
Tabung Penukar Panas (443)
Paket tabung penukar panas (40)
Lembar Tabung Penukar Panas (117)
penyekat penukar panas (37)
Pendingin udara (9)
Kapal Tekanan (4)
Pipa Las Stainless Steel (58)
Tabung Las Stainless Steel (120)
Nikel paduan pipa (266)
Tabung Paduan Nikel (92)
Tabung paduan tembaga (240)
Tabung Baja Paduan (204)
tabung titanium (15)
Bright Annealed Tube (155)
Tabung Boiler (151)
pemasangan baja (826)
Flensa Baja (615)
Yang lain (401)
Bagian Pelapis (7)
Detil Deskripsi produk
Standar Standar & Setara: ASME SB163 / ASTM B163 Kelas Bahan & Setara: UNS N02201 / Paduan Nikel 201
Pengujian Non-Destruktif (NDT): Uji Hidrostatis, Uji Arus Eddy Jenis Produk: Tabung paduan nikel tanpa jahitan
Diameter Luar (OD):: 1/8" - 8" (3,18mm - 203,2mm) Ketebalan dinding (wt): 0,015" - 0,5" (0,38mm - 12,7mm)
Aplikasi khas: Peralatan Pengolahan Kimia, Pabrik Petrokimia, Komponen Dirgantara, Teknik Kelautan, Tenaga Nuklir
Menyoroti:

ASME SB163 N02201 seamless nickel tube

,

nickel alloy tube for heat exchangers

,

N02201 condenser tube with warranty

ASME SB163 N02201 Seamless Nickel and Nickel Alloy Condenser and Heat-Exchanger Tubes


N02201 Seamless Tube: Nickel Alloy Excellence


ASME SB163 N02201 (UNS N02201) seamless tubing offers exceptional purity (>99% nickel), outstanding thermal/electrical conductivity, and superior corrosion resistance in reducing and alkaline environments. Ideal for high-temperature applications up to 600°C (1,112°F), this low-carbon variant minimizes carbide precipitation, ensuring stability in critical industrial processes.


N02201 Chemical Composition Purity


The high-nickel chemistry guarantees resistance to caustic solutions, organic acids, and chlorine ions.


Element Ni C Mn Fe Si S Cu
% Min 99.0 – – – – – –
% Max – 0.02 0.35 0.40 0.35 0.01 0.25



Global Material Equivalents for N02201 Alloy


Standard UNS EN DIN/W.Nr. JIS
Grade N02201 Ni 99.2 2.4061 NW 2201


N02201 Mechanical Strength & Formability


Optimized for ductility in annealing conditions:


Property Value
Tensile Strength ≥ 380 MPa (55 ksi)
Yield Strength (0.2% OS) ≥ 103 MPa (15 ksi)
Elongation (50mm Gauge) ≥ 40%
Hardness (Rockwell B) ≤ 65 HRB

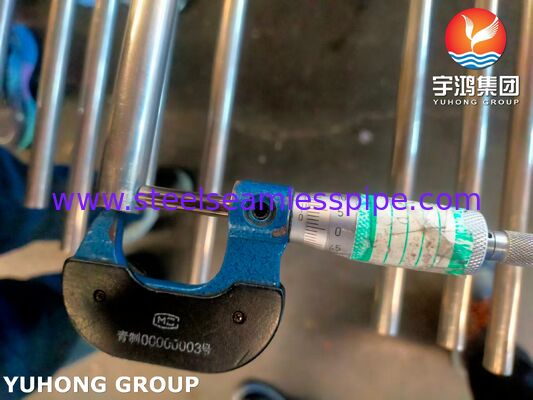

Precision Tolerances for NICKEL 201 Tubes


Manufactured to ASME SB163 dimensional standards:


Parameter Tolerance (±)
Outer Diameter ≤25.4mm: 0.10mm
>25.4mm: 0.5% of OD
Wall Thickness 10% of nominal wall
Length (Cut) +3.2mm / -0mm
Straightness 0.5mm per 1m length


N02201 Industrial Applications


Deployed where purity and corrosion resistance are critical:


  • Chemical Processing: Reactors, heat exchangers handling caustic soda, chlorine.


  • Electronics: Semiconductor furnace components, lead frames.


  • Aerospace: Hydraulic lines, fuel injection systems.


  • Food/Pharma: Distillation columns, ultra-pure fluid transfer.


  • Energy: Molten salt reactors, alkaline fuel cells.
