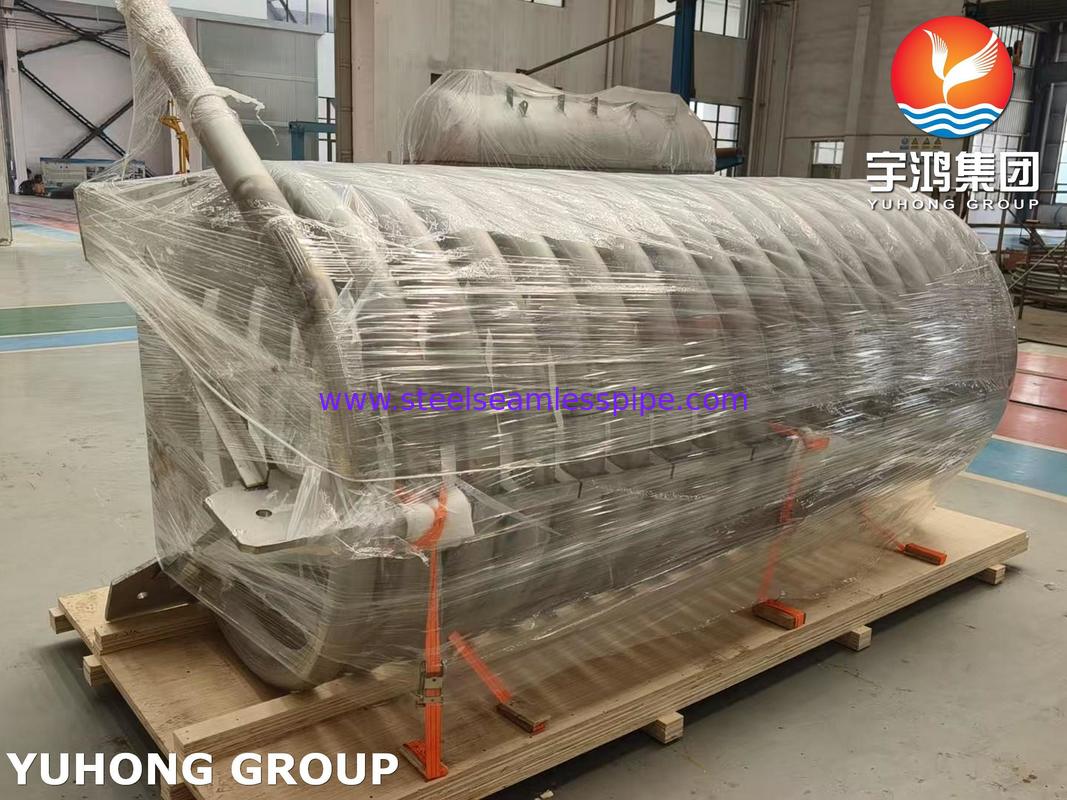

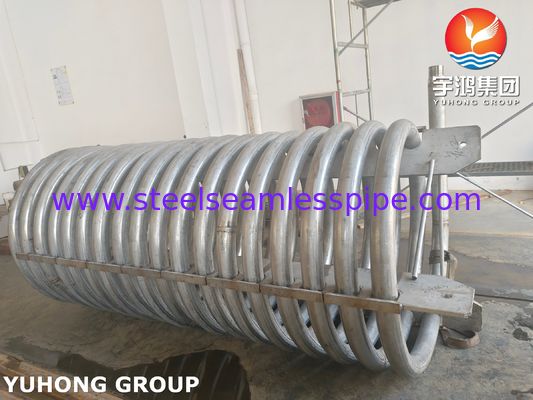

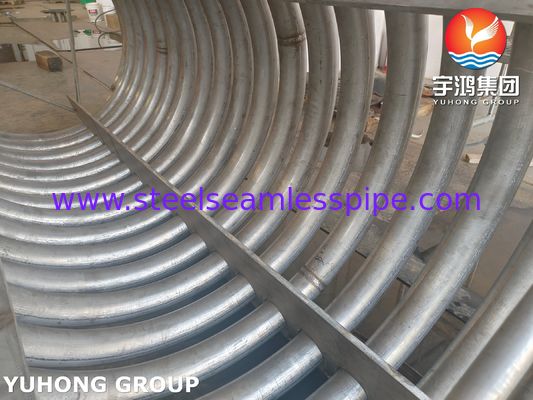

Name: STAINLESS STEEL SEAMLESS COIL PIPE TP310S FOR START UP HEATER WITH COIL SUPPORT
Brand: Yuhong Group Co.,Ltd
SKU: ASTM A312, ASME SA312
Price: 150000.00 USD
Availability: InStock

Yuhong Holding Group Co., LTD

Indonesian

Rumah

Produk

Tentang kita

Wisata pabrik

Kontrol kualitas

Hubungi kami

Berita perusahaan

Rumah Produk Pipa Seamless Stainless Steel

STAINLESS STEEL SEAMLESS COIL PIPE TP310S FOR START UP HEATER WITH COIL SUPPORT

Detail produk:

Tempat asal:	Tiongkok
Nama merek:	YUHONG
Sertifikasi:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Nomor model:	ASTM A312, ASME SA312

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	100kgs
Kemasan rincian:	KASUS PLYWOOD, BUNDLE, TAS ANYAMAN
Waktu pengiriman:	7 hari
Syarat-syarat pembayaran:	L/c, t/t

Kontak

Semua produk

Pipa Seamless Stainless Steel (290)

Tabung Mulus Stainless Steel (277)

Pipa Stainless Steel Dupleks (127)

Tabung Baja Tahan Karat Dupleks (29)

Tabung jarum (107)

Tabung Sirip (631)

Penukar panas (17)

Tabung Penukar Panas (424)

Paket tabung penukar panas (37)

Lembar Tabung Penukar Panas (116)

penyekat penukar panas (36)

Pendingin udara (8)

Kapal Tekanan (4)

Pipa Las Stainless Steel (57)

Tabung Las Stainless Steel (114)

Nikel paduan pipa (261)

Tabung Paduan Nikel (79)

Tabung paduan tembaga (227)

Tabung Baja Paduan (184)

tabung titanium (10)

Bright Annealed Tube (153)

Tabung Boiler (145)

pemasangan baja (804)

Flensa Baja (590)

Yang lain (391)

Bagian Pelapis (7)

Detil Deskripsi produk

Standar:	ASTM,ASME,JIS,EN...	Bahan:	TP304, TP304L,TP316, TP316L, TP310S..
Panjang:	Sesuai gambar	Od:	1/2" SAMPAI 10"
Jenis:	Mulus, dilas	Permukaan:	Dipoles, acar, dianil terang
Menyoroti:	stainless steel seamless coil pipe , TP310S start up heater pipe , coil pipe with coil support

STAINLESS STEEL SEAMLESS COIL PIPE TP310S FOR START UP HEATER WITH COIL SUPPORT

The coiled pipe unit can run thousands of meters of continuous joint-free steel pipes (diameter 9~88.9mm) into the production pipe of an oil and gas well to complete specific workover operations such as well cleanout, fishing, fracturing, acidification, etc. or into its casing for logging operations or direct.Coil heaters can be closely wound to provide concentrated heat or can be stretched to fulfill distributed wattage needs. Coil heaters can also accommodate integrated thermocouples for precise temperature control and quick response.

Bent and formed stainless steel pipe is used in a variety of applications, including:

Manifold assemblies for the transportation industry
Hydraulic fluid supply lines for industrial purposes
Bumpers to protect OEM products
Housing for water monitoring systems
Tubular handles used in OEM instruments and machinery

Comparison with Other Heater Types
Feature	Coil-Shaped Tubular Heater	Straight Tubular Heater	Open Coil Heater (Exposed Wire)
Structure	Metal tube bent into a coil	Straight metal tube	Bare, exposed resistance wire coiled around insulators
Robustness	Very High. Protected from physical contact and environment.	High. Protected but less surface area in a compact space.	Low. Exposed and fragile.
Watt Density	Very High	Moderate	High
Typical Use	Air heating, high-temp platens	Immersion in liquids, surface mounting on tanks	Toasters, domestic space heaters, non-hazardous air ducts
Safety	Very Safe. Sheath prevents electrical contact.	Very Safe.	Less Safe. Risk of electric shock and fire from contact.

Grades:

304, 316L, 310S, and others as specified by the customer.

Chemical Composition of ASTM A312 TP310S

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	N
310	min. max.	- 0.25	- 2.00	- 1.50	- 0.045	- 0.030	24.0 26.0	-	19.0 22.0
310S	min. max.	- 0.08	- 2.00	- 1.50	- 0.045	- 0.030	24.0 26.0	-	19.0 22.0

Mechanical Properties of ASTM A312 310S

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Rockwell B (HR B) max	Brinell (HB) max
310	515	205	40	95	217
310S	515	205	40	95	217
