ASTM A182 F11 CL2 Forgings Alloy Steel Sockolet High Pressure Pipe Fittings

Detail produk:

Tempat asal:	CINA
Nama merek:	YUHONG
Sertifikasi:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Nomor model:	ASTM A182 F11 CL2 Sockolet baja paduan

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 pc
Kemasan rincian:	Kasing / Pallet Kayu Lapis
Waktu pengiriman:	7 hari
Syarat-syarat pembayaran:	L/c, t/t

Kontak

Semua produk

Pipa Seamless Stainless Steel (290)

Tabung Mulus Stainless Steel (277)

Pipa Stainless Steel Dupleks (127)

Tabung Baja Tahan Karat Dupleks (29)

Tabung jarum (107)

Tabung Sirip (631)

Penukar panas (17)

Tabung Penukar Panas (424)

Paket tabung penukar panas (37)

Lembar Tabung Penukar Panas (116)

penyekat penukar panas (36)

Pendingin udara (8)

Kapal Tekanan (4)

Pipa Las Stainless Steel (57)

Tabung Las Stainless Steel (114)

Nikel paduan pipa (261)

Tabung Paduan Nikel (79)

Tabung paduan tembaga (227)

Tabung Baja Paduan (184)

tabung titanium (10)

Bright Annealed Tube (153)

Tabung Boiler (145)

pemasangan baja (804)

Flensa Baja (590)

Yang lain (391)

Bagian Pelapis (7)

Detil Deskripsi produk

Nama Produk:	Sockolet	Ukuran:	ANSI, ASTM, ASME, BS, DIN, EN
Standar:	ASTM A182/ ASME SA182	Bahan:	F5, F9, F11, F12, F22, F91
Ukuran:	Sebagai persyaratan atau standar menggambar pembeli	Membentuk:	bisa custom, sesuai kebutuhan gambar pembeli
Kelas:	3000#, 6000#, 9000#
Menyoroti:	ASTM A182 F11 CL2 alloy steel sockolet , high pressure pipe fittings alloy steel , forged steel sockolet pipe fittings

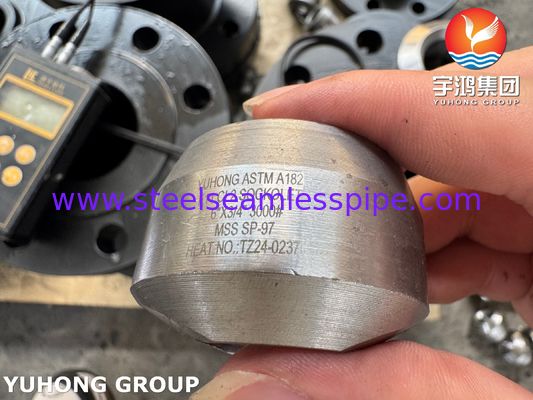

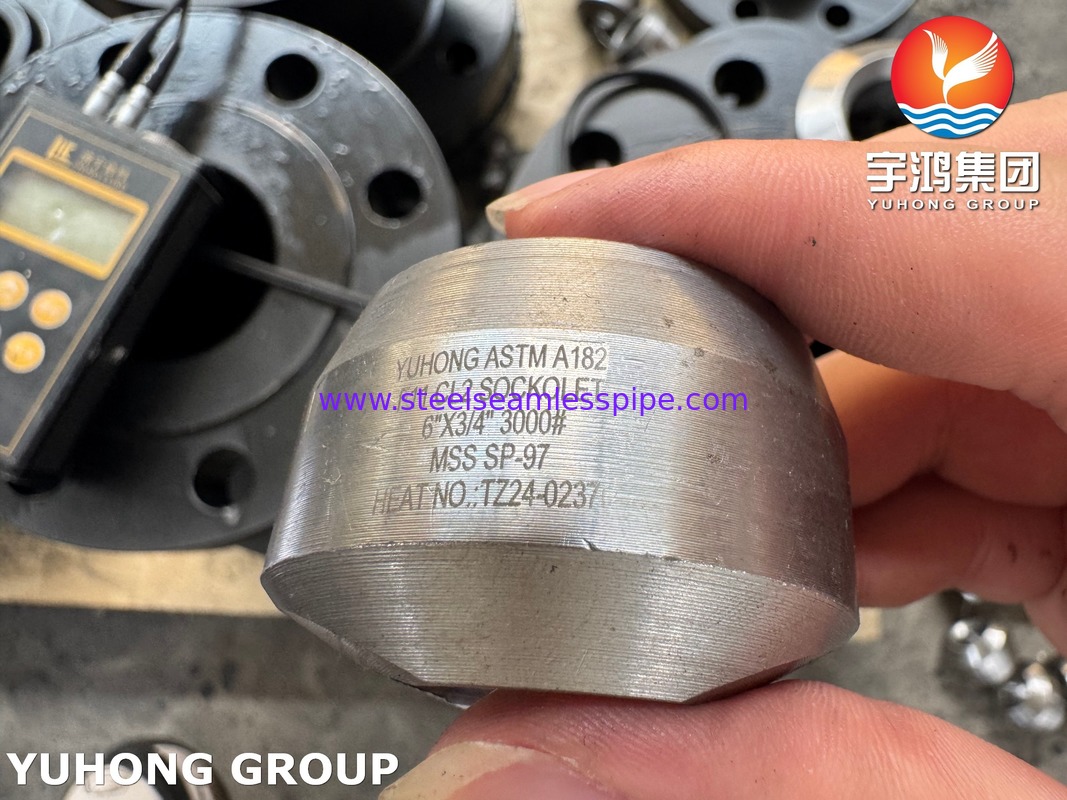

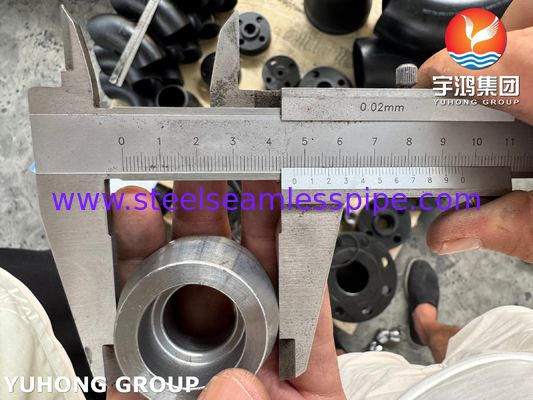

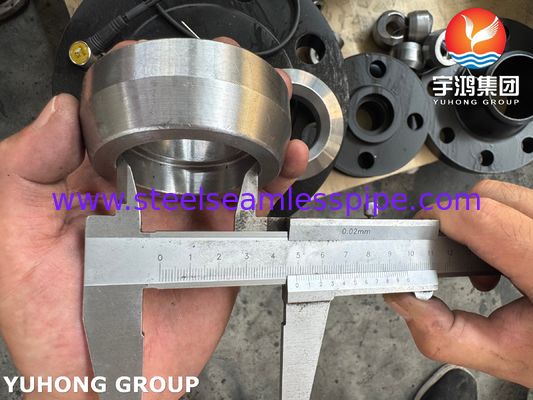

ASTM A182 F11 CL2 Alloy Steel Forged Sockolet for High Pressure Service

A Sockolet is a type of branch connection fitting manufactured by a company called Bonney Forge (now part of PCC Energy Group). The name has become generic, much like "Kleenex" for tissues. It is used to create a 90-degree branch from a main run pipe without the need for a separate tee fitting.

Design: It has a socket-weld outlet on the branch side and a butt-weld connection on the run side (the header). The branch pipe is inserted into the socket and fillet-welded.
Purpose: It provides a strong, reinforced branch connection that is ideal for small-bore piping (typically NPS 2" and below) in high-pressure systems. It is more compact and offers better flow characteristics than a threaded coupling or a saddle-type connection.

ASTM A182 F11 CL2 Alloy Steel Forged Fitting Sockolet Equivalent Grade

Brand Name	Ravne No.	Mat. No.	DIN	EN	AISI
13CRMO44	762	1.7335	13CrMo44	13CrMo4-5	A 182 Grade F11

ASTM A182 F11 CL2 Alloy Steel Forged Fitting Sockolet Chemical Composition (%)

C	Si	Mn	Cr	Mo	P	S
0.1-0.2	0.5-1.0	0.3-0.8	1.0-1.5	0.44-0.65	0.04 max	0.04max

Comparison Table: F11 vs. Common Alternatives

Feature	ASTM A182 F11 CL2	ASTM A105 (Carbon Steel)	ASTM A182 F22 (Grade 22)	ASTM A182 F316L (Stainless)
Primary Use	High-Temp Steam & Process	Low-Temp Utility Services	Higher Temp/Pressure than F11	Corrosion Resistance
Key Elements	1.25% Cr, 0.5% Mo	Carbon, Manganese	2.25% Cr, 1.0% Mo	17% Cr, 12% Ni, 2.5% Mo
Temp Range	Up to ~1000°F (538°C)	Up to ~800°F (427°C)	Up to ~1200°F (649°C)	Varies (for corrosion)
Main Advantage	Balanced strength & weldability	Low Cost	Superior Creep Strength	Excellent Corrosion Resistance
Weldability	Good (with pre/PWHT)	Excellent	Requires careful procedure	Excellent

Specification

Standard	Types	Class Rating/Schedule	Ends	Size
ASME B16.11	90°Elbow/ 45°Elbow/ Tee/ Cross/Pipe Cap/ Half Coupling/Full Coupling	3000LB/6000LB	Threaded	1/4''~4''
		3000LB/6000LB	Socket-welding	1/8''~4''
	90°Elbow/ 45°Elbow/ Tee/ Cross/Half Coupling/Full Coupling	9000LB	Socket-welding	1/2''~2''
	Street Elbow	3000LB	Threaded	1/8''~2''
	Street Elbow	6000LB	Threaded	1/8''~1-1/2''
	Lateral Tee	3000LB	Socket-welding	1/4''~2''
		6000LB	Socket-welding	1/2''~1-1/2''
		3000LB	Threaded	3/8''~2‘’
		6000LB		1/2''~2''
		9000LB		1/2''~1-1/2''
	Flush Bushing/Hex Bushing/Hex Plug/Round Plug/Square Plug	3000LB/6000LB	Threaded	1/8''~4''
MSS SP79	Reducer Inserts	3000LB/6000LB/9000LB	Socket-welding	3/8‘’x1/4''~2x1/2''
MSS SP83	Union	3000LB	Socket-welding/Threaded	1/8''~3''
MSS SP95	Concentric/Eccentric Swaged Nipples		See Below Note1	1/4‘’~12''
MSS SP95	Bull Plugs		Threaded	1/8''~12''
MSS SP97	Weldolet	STD, XS, Sch 160/XXS	Butt-welding	1/8''~36‘’ or larger
	Sockolet	3000LB/6000LB	Socket-welding	1/8''~6''
	Threadolet	3000LB/6000LB	Threaded	1/8''~6''
	Nipolet	XS/XXS	Plain/Threaded	1/2''~2''
	Elbolet	3000LB/6000LB	Socket-welding/Threaded	1/4''~2''
	Elbolet	STD/XS/160/XXS	Butt-welding	1/4''~2-1/2'' or larger
	Latrolet	3000LB/6000LB	Socket-welding/Threaded	1/2''~2''
	Latrolet	STD/XS/160/XXS	Butt-welding	1/2''~2-1/2''
	Flangolet,Nipolet,Sweepolet,etc. available as per client' demands.
