ASME SB564 N04400 Nickel Alloy Forged Fitting Coupling BSC

Detail produk:

Tempat asal:	CINA
Nama merek:	YUHONG
Sertifikasi:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Nomor model:	SB564 N04400

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	10 pcs
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Sesuai dengan Kebutuhan Klien / Ply-wooden Case / Iron Case / Bundel dengan Tutup plastik
Waktu pengiriman:	10-35 hari
Syarat-syarat pembayaran:	T/t, l/c
Menyediakan kemampuan:	Sesuai dengan Kebutuhan Klien

Kontak

Semua produk

Pipa Seamless Stainless Steel (290)

Tabung Mulus Stainless Steel (277)

Pipa Stainless Steel Dupleks (127)

Tabung Baja Tahan Karat Dupleks (29)

Tabung jarum (107)

Tabung Sirip (631)

Penukar panas (17)

Tabung Penukar Panas (424)

Paket tabung penukar panas (37)

Lembar Tabung Penukar Panas (116)

penyekat penukar panas (36)

Pendingin udara (8)

Kapal Tekanan (4)

Pipa Las Stainless Steel (57)

Tabung Las Stainless Steel (114)

Nikel paduan pipa (261)

Tabung Paduan Nikel (79)

Tabung paduan tembaga (227)

Tabung Baja Paduan (184)

tabung titanium (10)

Bright Annealed Tube (153)

Tabung Boiler (145)

pemasangan baja (804)

Flensa Baja (590)

Yang lain (391)

Bagian Pelapis (7)

Detil Deskripsi produk

Nama:	Kopling paduan nikel	Bahan:	N04400
Tekanan:	1500# hingga 9000#	Od:	1/8'' sampai 4''
Standar:	SB564	Aplikasi:	Plumbing, HVAC, Industri, dan Penggunaan Komersial
Menyoroti:	ASME SB564 nickel alloy coupling , N04400 forged steel fitting , BSC nickel alloy coupling

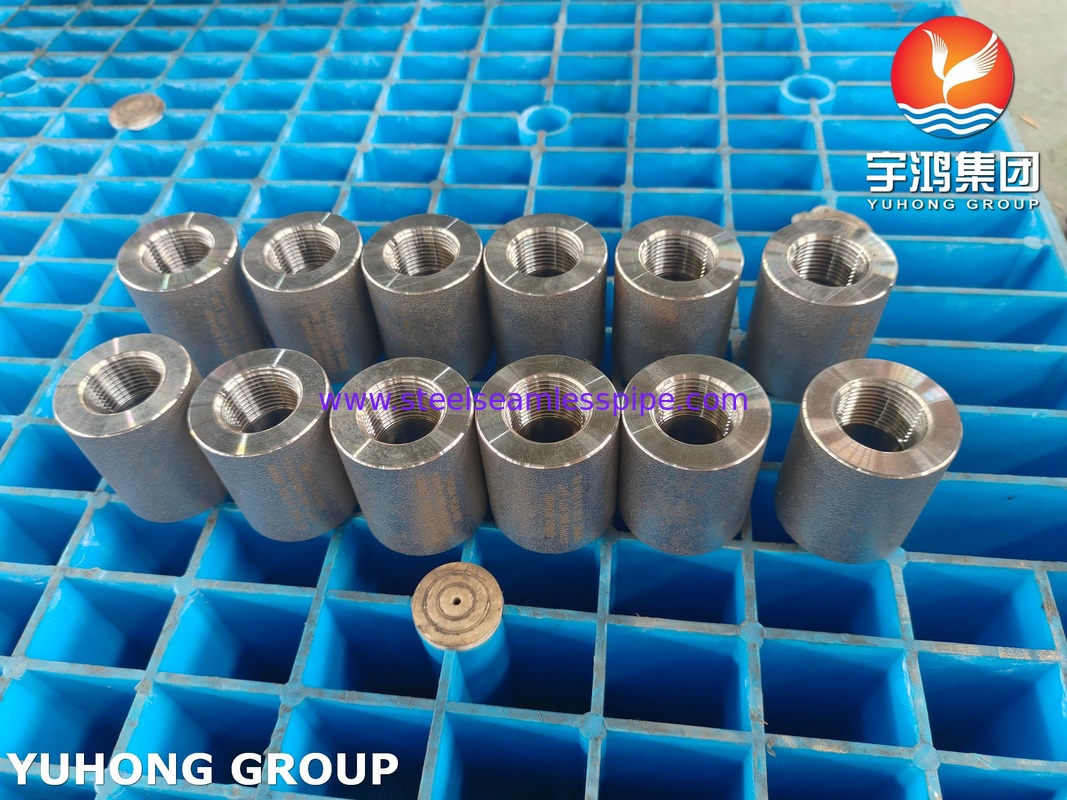

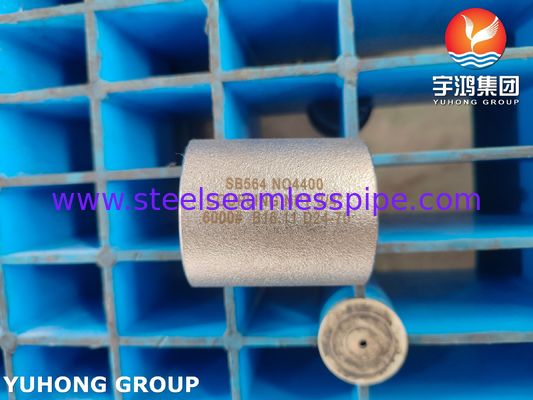

ASME SB564 N04400 Nickel Alloy Forged Fitting Coupling BSC

The SB564 N04400 Coupling is a pipe coupling forged from Monel 400 nickel-copper alloy. Manufactured according to ASTM SB564 standards, it offers exceptional mechanical strength and excellent corrosion resistance, particularly against harsh media such as seawater, sulfuric acid, and hydrofluoric acid.

This product is primarily used in demanding piping systems in industries such as offshore, chemical, petroleum, and pharmaceuticals, providing reliable pipe connections. It is ideal for non-magnetic and highly corrosive environments.

Nickel-Copper Alloy UNS N04400
Alloy Name	Nickel	Copper	Iron	Manganese	Carbon	Silicon	Sulfur, max
Monel 400	63.0 min	28.0-34.0	2.5 max	2.0 max.	0.3 max.	0.5 max.	0.024

Material and Condition	Maximum Section Thickness, in. (mm)	Tensile Strength, min, ksi [MPa]	Yield Strength, min, ksi [MPa]	Elongation in 2 in. [50 mm] or 4D,min, %
Nickel-Iron-Copper Alloy UNS N04400, Annealed	-	70 [483]	25 [172]	35
