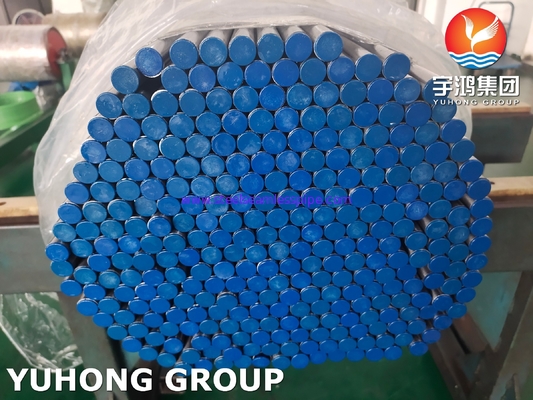

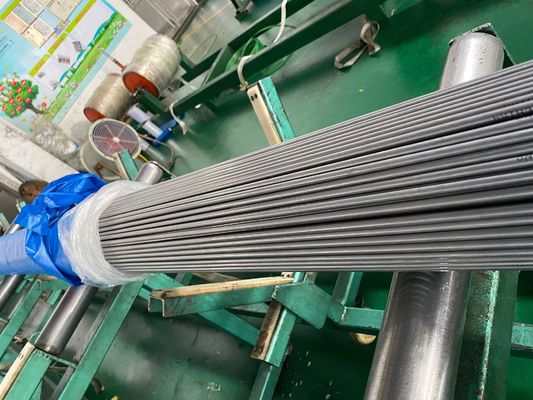

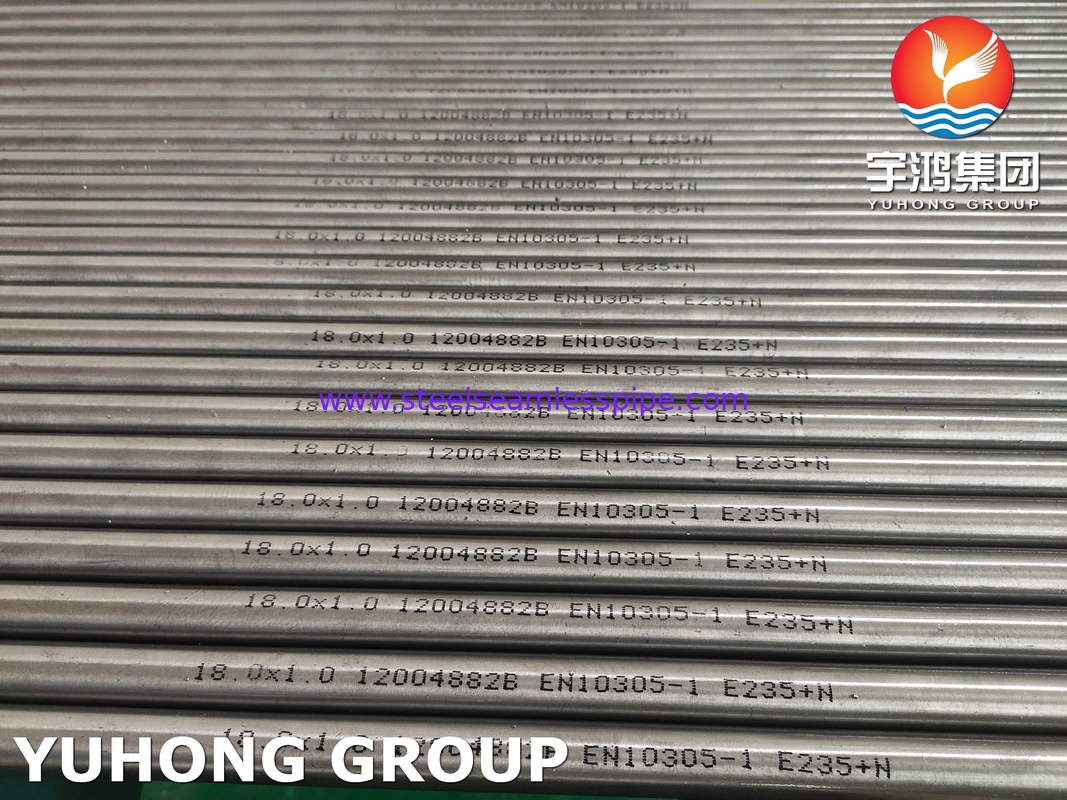

EN10305-1 E235+N NBK Precision Seamless Tube For Automobile Usage

Detail produk:

Tempat asal:	Cina
Nama merek:	YUHONG
Sertifikasi:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Nomor model:	E235+N, ST37.4ST52.4

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	100kg
Kemasan rincian:	KASUS PLYWOOD, BUNDLE
Waktu pengiriman:	7 hari
Syarat-syarat pembayaran:	L/C, T/T

Kontak

Semua produk

Pipa Seamless Stainless Steel (277)

Tabung Mulus Stainless Steel (269)

Pipa Stainless Steel Dupleks (128)

Tabung Baja Tahan Karat Dupleks (27)

Tabung jarum (86)

Tabung Sirip (596)

Penukar panas (10)

Tabung Penukar Panas (419)

Paket tabung penukar panas (37)

Lembar Tabung Penukar Panas (117)

penyekat penukar panas (35)

Pendingin udara (7)

Kapal Tekanan (2)

Pipa Las Stainless Steel (57)

Tabung Las Stainless Steel (113)

Nikel paduan pipa (258)

Tabung Paduan Nikel (75)

Tabung paduan tembaga (210)

Tabung Baja Paduan (173)

tabung titanium (9)

Bright Annealed Tube (153)

Tabung Boiler (138)

pemasangan baja (784)

Flensa Baja (574)

Yang lain (384)

Detil Deskripsi produk

OD:	3/4" (19.05), 1"(25.4), 1-1/4" ((31.75), 1-1/2" ((38.1), 2" (50.8), 2-1/2" ((63.5), 3" (76.2)	Penggunaan:	Tabung Penukar Panas, Tabung Boiler
Standar:	EN10305-1	Bahan:	ST37.4, ST52.4,E235+N
WT:	0.89,1,1.24,2.11MM....
Menyoroti:	EN10305-1 E235+N Tabung tanpa jahitan , Tabung Bebas Sambungan NBK , Penggunaan Mobil Tabung Tanpa Jahit

EN10305-1 E235+N NBK Precision Seamless Tube For Automobile Usage

Description:

Grade:St 35 / St37 / St37.4 / St45 / St 52 / St52.4/ E215 / E235 / E355

Standard: DIN 2391, EN10305-1, EN10305-4, BS 6323, ISO 8535

DIN2391 Precision steel tube

STEEL GRADE: ST30Si, ST30Al, ST35, ST37, ST37.4, ST45, ST52, ST52.4, etc

Size:(mm)

OD: 6 mm ~ 350mm

WT: 0.8 mm ~30mm

Length: Fixed(6m,9m,12,24m) or normal length(5-12m)

Normal sizes:8*1mm,10*1mm,16*1mm,18*1mm,25*1mm,18*1.5mm, 25*2.5mm....

Chemical Composition

Steel Grade		Chemical Components (%)
Steel Name	Steel Number	C max.	Si max.	Mn max.	P max.	S max.	AL min.
E215	1.0212	0.10	0.05	0.7	0.025	0.025	0.025
E235	1.0308	0.17	0.35	1.2	0.025	0.025	/
E355	1.058	0.22	0.55	1.6	0.025	0.025	/

Delivery Conditions

The tubes shall be manufactured from hot finished seamless tubes by cold drawing or other suitable processes. The tubes shall be supplied in one of the delivery conditions as follows:

Designation	Symbol	Description
Cold drawn/hard	+C	No heat treatment after the final cold drawing process.
Cold drawn/soft	+LC	After the final heat treatment there is a suitable drawing pass.
Cold drawn and stress relieved	+SR	After the final cold drawing process there is a stress relief heat treatment in a controlled atmosphere.
Annealed	+A	After the final cold drawing process the tubes are annealed in a controlled atmosphere.
Normalized	+N	After the final cold drawing operation, the tubes are normalized in a controlled atmosphere.
