Yuhong Holding Group Co., LTD
 |
| Tempat asal: | Cina |
| Nama merek: | YUHONG |
| Sertifikasi: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015, IEI |
| Nomor model: | ASTM A234 WP11,WP22,WP5,P9,P91,P92 |
| Kuantitas min Order: | 1pc |
|---|---|
| Kemasan rincian: | KASUS PLYWOOD, BUNDLE, PALLET |
| Waktu pengiriman: | 7 hari |
| Syarat-syarat pembayaran: | L/C, T/T |
| Bahan: | ASTM A234 WP11, WP22, WP5, P9,P91,P92 | Jenis: | SIKU, TEE, REDUCER, BEND SIKU, CAP, CROSS |
|---|---|---|---|
| OD: | NB 1/2" - NB 48". | Permukaan: | Lukisan Hitam |
| WT: | SCH 10S - SCH XXS | ||
| Cahaya Tinggi: | Pipa baja paduan Lr Elbow,180 derajat SR siku,Fittings pipa baja paduan ASTM A234 |
||

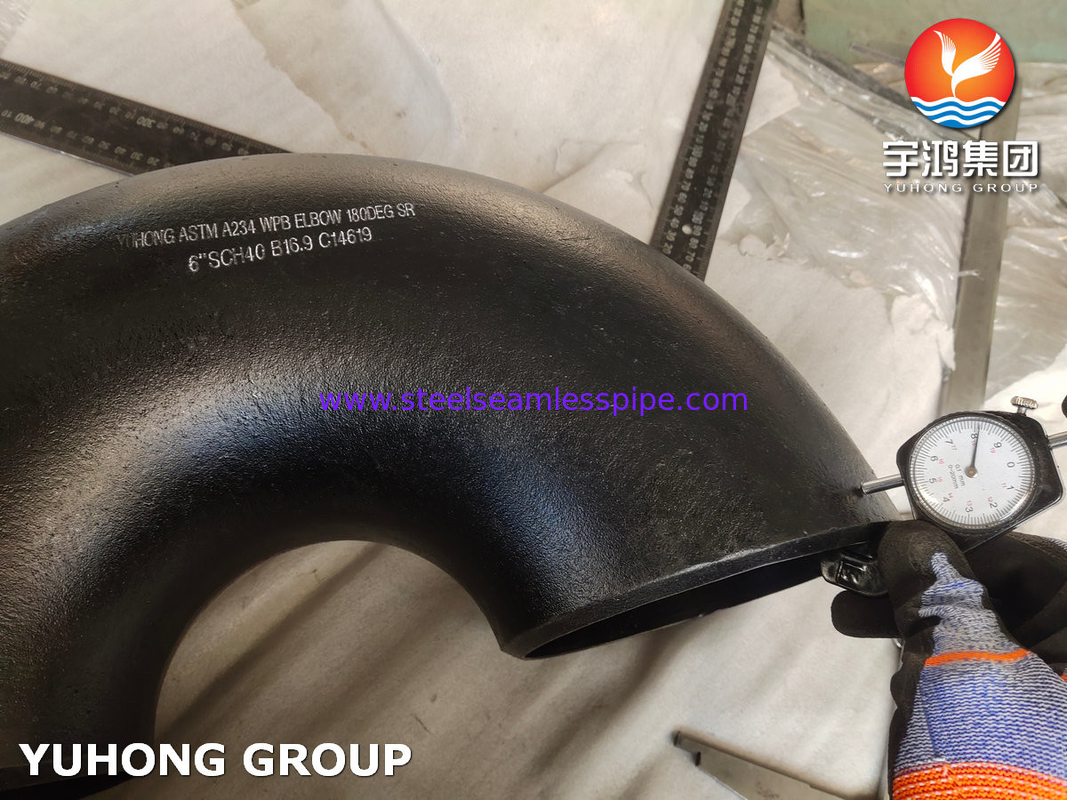

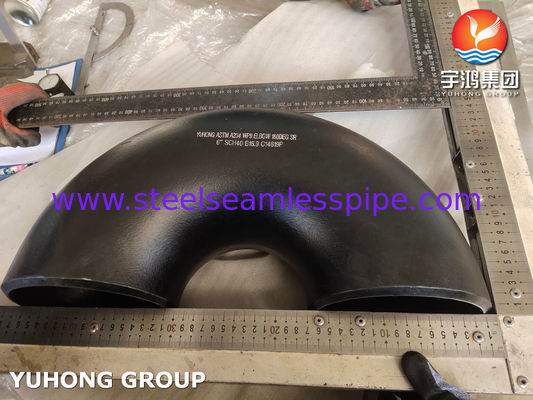

Fittings pipa baja paduan ASTM A234 WP9 WP5 180° LR SR siku
Bahan A234 WP9 terdiri dari karbon, mangan, silikon, belerang, fosfor, kromium dan molibdenum dalam komposisinya.Komposisi ini memungkinkan untuk tekanan tinggi dan layanan suhu tinggi hingga menengah dengan peningkatan ketahanan korosi.Fitting baja paduan dapat terhubung ke berbagai pipa dengan bentuk dan ukuran yang berbeda.
Fitting pipa baja karbon - Radius Panjang siku 90
Berbagai produk:
Ukuran: 1/8" NB sampai 48" NB IN
Daftar : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Tipe: Tanpa jahitan / ERW / Las / Pabrik / Dipalsukan
Bentuk: Reduktor eksentrik, Reduktor konsentris
Bahan-bahan
Reduktor baja karbon - Reduktor CS
ASTM A 234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPHY 60, WPHY 65 & WPHY 70.
Reduktor baja karbon suhu rendah - Reduktor LTCS
ASTM A420 WPL3 / A420WPL6
Reducer baja paduan - AS Reducer
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
| Nominal Ukuran pipa |
Di luar Diameter |
Di dalam Diameter |
Dinding Ketebalan |
Pusat Untuk Akhir |
Pipa Jadwal |
Berat badan Pound |
| 1/2 | 0.84 | 0.622 | 0.109 | 1.5 | 40 | 0.16 |
| 3/4 | 1.05 | 0.824 | 0.113 | 1.5 | 40 | 0.17 |
| 1 | 1.32 | 1.049 | 0.133 | 1.5 | 40 | 0.4 |
| 1 1/4 | 1.66 | 1.38 | 0.14 | 1.88 | 40 | 0.55 |
| 1 1/2 | 1.9 | 1.61 | 0.145 | 2.25 | 40 | 0.8 |
| 2 | 2.38 | 2.07 | 0.154 | 3 | 40 | 1.6 |
| 2 1/2 | 2.88 | 2.47 | 0.203 | 3.75 | 40 | 3.2 |
| 3 | 3.5 | 3.07 | 0.216 | 4.5 | 40 | 4.8 |
| 3 1/2 | 4 | 3.55 | 0.226 | 5.25 | 40 | 6.6 |
| 4 | 4.5 | 4.03 | 0.237 | 6 | 40 | 8.9 |
| 5 | 5.56 | 5.05 | 0.258 | 7.5 | 40 | 15.1 |
| 6 | 6.62 | 6.07 | 0.28 | 9 | 40 | 24 |
| 8 | 8.62 | 7.98 | 0.322 | 12 | 40 | 47.8 |
| 10 | 10.75 | 10.02 | 0.365 | 15 | 40 | 83.4 |
| 12 | 12.75 | 12 | 0.375 | 18 | * | 123 |
| 14 | 14 | 13.25 | 0.375 | 21 | 30 | 155 |
| 16 | 16 | 15.25 | 0.375 | 24 | 30 | 206 |
| 18 | 18 | 17.25 | 0.375 | 27 | * | 262 |
| 20 | 20 | 19.25 | 0.375 | 30 | 20 | 324 |
| 24 | 24 | 23.25 | 0.375 | 36 | 20 | 466 |
| 30 | 30 | 29.25 | 0.375 | 45 | * | 720 |
| 36 | 36 | 35.25 | 0.375 | 54 | * | 1,039 |
| 42 | 42 | 41.25 | 0.375 | 63 | * | 1,420 |
| 48 | 48 | 47.25 | 0.375 | 72 | * | 2,000 |
| Nominal Ukuran pipa |
Di luar Diameter |
Di dalam Diameter |
Dinding Ketebalan |
Pusat Untuk Akhir |
Pipa Jadwal |
Berat badan Pound |
| 1/2 | 0.84 | 0.546 | 0.147 | 1.5 | 80 | 0.26 |
| 3/4 | 1.05 | 0.742 | 0.154 | 1.5 | 80 | 0.29 |
| 1 | 1.32 | 0.957 | 0.179 | 1.5 | 80 | 0.48 |
| 1 1/4 | 1.66 | 1.27 | 0.191 | 1.88 | 80 | 0.79 |
| 1 1/2 | 1.9 | 1.5 | 0.2 | 2.25 | 80 | 1.2 |
| 2 | 2.37 | 1.93 | 0.218 | 3 | 80 | 2.1 |
| 2 1/2 | 2.88 | 2.32 | 0.276 | 3.75 | 80 | 3.8 |
| 3 | 3.5 | 2.9 | 0.3 | 4.5 | 80 | 6.3 |
| 3 1/2 | 4 | 3.36 | 0.318 | 5.25 | 80 | 8.6 |
| 4 | 4.5 | 3.82 | 0.337 | 6 | 80 | 12.5 |
| 5 | 5.56 | 4.81 | 0.375 | 7.5 | 80 | 21.2 |
| 6 | 6.63 | 5.76 | 0.432 | 9 | 80 | 34.4 |
| 8 | 8.63 | 7.63 | 0.5 | 12 | 80 | 71.3 |
| 10 | 10.75 | 9.75 | 0.5 | 15 | 60 | 111 |
| 12 | 12.75 | 11.75 | 0.5 | 18 | * | 158 |
| 14 | 14 | 13 | 0.5 | 21 | * | 201 |
| 16 | 16 | 15 | 0.5 | 24 | 40 | 270 |
| 18 | 18 | 17 | 0.5 | 27 | * | 348 |
| 20 | 20 | 19 | 0.5 | 30 | 30 | 422 |
| 24 | 24 | 23 | 0.5 | 36 | * | 604 |
| 30 | 30 | 29 | 0.5 | 45 | 20 | 997 |
| 36 | 36 | 35 | 0.5 | 54 | 20 | 1,380 |
| 42 | 42 | 41 | 0.5 | 63 | * | 1,880 |
| 48 | 48 | 47 | 0.5 | 72 | * | 2,502 |
