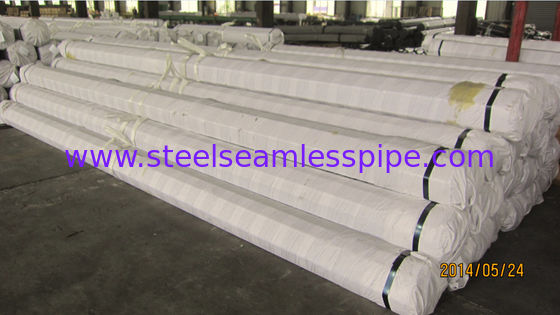

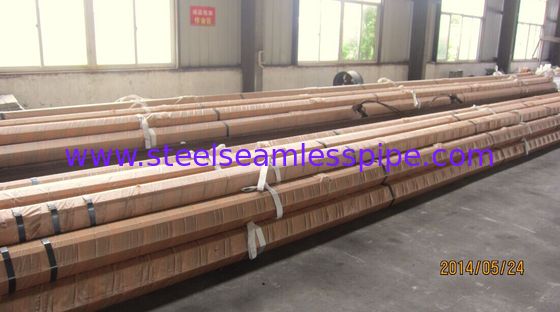

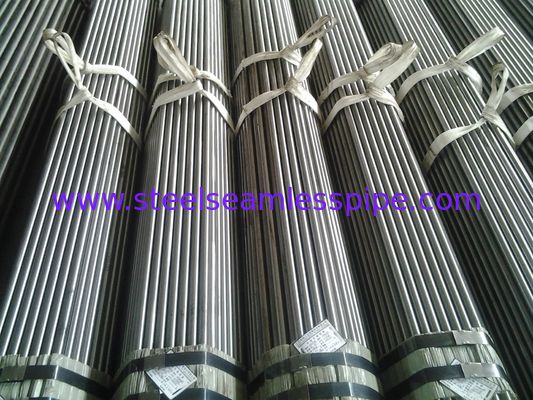

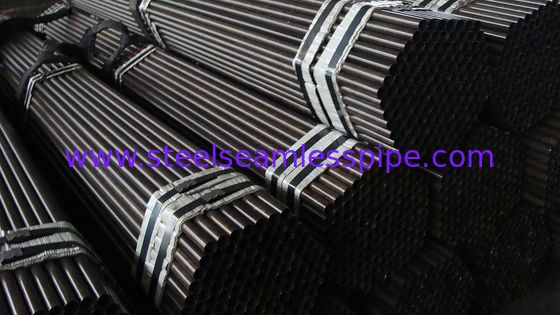

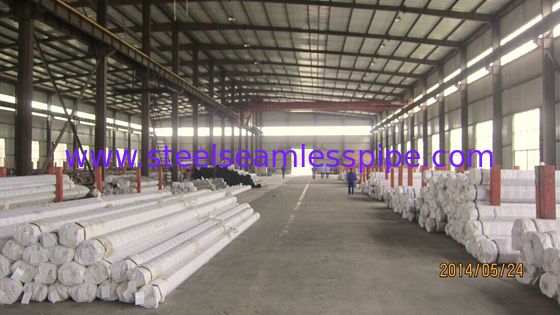

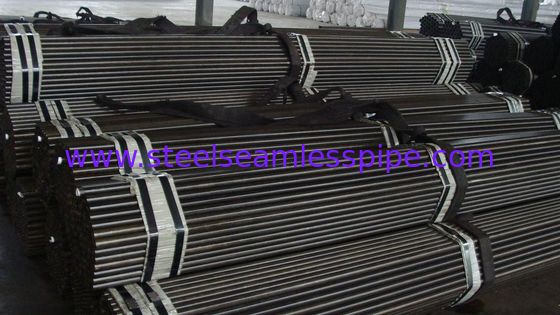

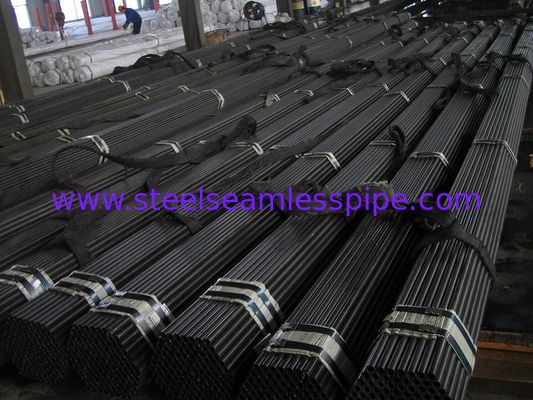

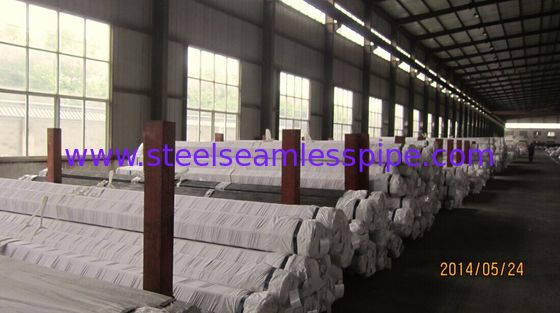

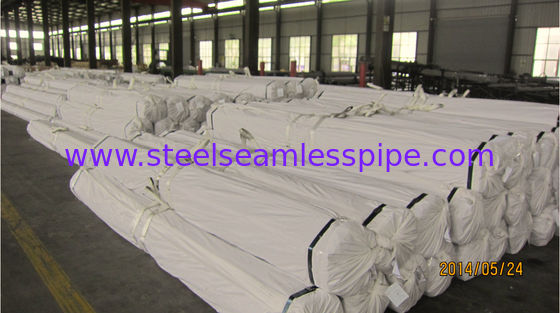

ASTM A192 ASME SA192 Carbon Steel Seamless Boiler Tube, DIN17175 ST35.8, ST45.8

ASTM A192 ASME SA192 Carbon Steel Seamless Boiler Tube, DIN17175 ST35.8, ST45.8

    • ASTM A192 ASME SA192 Carbon Steel Seamless Boiler Tube, DIN17175 ST35.8, ST45.8
    • ASTM A192 ASME SA192 Carbon Steel Seamless Boiler Tube, DIN17175 ST35.8, ST45.8
    • ASTM A192 ASME SA192 Carbon Steel Seamless Boiler Tube, DIN17175 ST35.8, ST45.8
    • ASTM A192 ASME SA192 Carbon Steel Seamless Boiler Tube, DIN17175 ST35.8, ST45.8
    • ASTM A192 ASME SA192 Carbon Steel Seamless Boiler Tube, DIN17175 ST35.8, ST45.8
    • ASTM A192 ASME SA192 Carbon Steel Seamless Boiler Tube, DIN17175 ST35.8, ST45.8
    • ASTM A192 ASME SA192 Carbon Steel Seamless Boiler Tube, DIN17175 ST35.8, ST45.8
    • ASTM A192 ASME SA192 Carbon Steel Seamless Boiler Tube, DIN17175 ST35.8, ST45.8
    • ASTM A192 ASME SA192 Carbon Steel Seamless Boiler Tube, DIN17175 ST35.8, ST45.8
  • ASTM A192 ASME SA192 Carbon Steel Seamless Boiler Tube, DIN17175 ST35.8, ST45.8

    Detail produk:

    Tempat asal: China, India, Amerika Serikat, Korea, UE
    Nama merek: YUHONG SPECIAL STEEL
    Sertifikasi: ISO9001-2008, API 5L, API 5CT
    Nomor model: ASTM A192 ASME SA192 DIN17175 ST35.8, ST45.8

    Syarat-syarat pembayaran & pengiriman:

    Kuantitas min Order: 100KGS
    Harga: negotiable
    Kemasan rincian: Kayu lapis /Iron kasus kasus / bundel dengan plastik Cap
    Waktu pengiriman: 10days->
    Syarat-syarat pembayaran: T/T, L/C
    Menyediakan kemampuan: 1500 ton per bulan
    Hubungi sekarang
    Detil Deskripsi produk
    Standar: ASTM A192 ASME SA192 DIN17175 Kelas: A179, A192
    Ukuran: 3/4 "(19,05), 1" (25,4), 1-1 / 4 "(31,75), 1-1 / 2" (38,1), 2 "(50,8), 2-1 Panjang: 12ft (3.657,6), 15ft (4572), 16ft (4.876,8), 6m, 20ft (6096), 24ft (7.315,2) 30ft (9144)

    ASTM A192 ASME SA192 Carbon Steel Seamless Boiler Tube, DIN17175 ST35.8, ST45.8.

    Aplikasi: Untuk tinggi, menengah, boiler tekanan rendah dan tujuan tekanan

    Produksi Standard, Grade, Baja No:

    ASTM A178 Grade A, C, D

    ASTM A179 Grade A, C, D

    ASTM A192

    ASTM A210 GradeA-1, C

    BS3059-Ⅰ 320 CFS

    BS3059-Ⅱ 360, 440, 243, 620-460, 622-490, S1, S2, TC1, TC2

    EN10216-1 P195TR1 / TR2, P235TR1 / TR2, P265TR1 / TR2

    EN10216-2 P195GH, P235GH, P265GH, TC1, TC2

    DIN17175 ST35.8, ST45.8

    DIN1629 ST37.0, ST44.0, ST50.0

    JIS G3454 STPG370, STPG410

    JIS G3461 STB340, STB410, STB440

    GB5310 20G, 15MoG, 12CrMoG, 12Cr2MoG, 15CrMoG, 12Cr1MoVG, 12Cr2MoWVTiB

    GB9948 10, 20, 12CrMo, 15CMo

    GB3087 10, 20

    Kondisi pengiriman: Anil, Normalized, Normalized dan Tempered

    Inspeksi dan Uji:

    Komposisi Kimia Pemeriksaan, Mechanical Properties Test (Kekuatan tarik, Yield Strength,

    Pemanjangan, Pembakaran, Kepepatan, Bending, Kekerasan, Uji Impact), Permukaan dan Dimensi Test, ada-destruktif Test, Hydrostatic Test.

    Pengobatan permukaan:

    Minyak-dip, Varnish, Pasif, Phosphating, Ditembak Blasting

    Ukuran tabung untuk Heat Exchanger & Kondensor & Boiler

    Diameter luar

    BWG

    25

    22

    20

    18

    16

    14

    12

    10

    Ketebalan dinding mm

    0.508

    0,71

    0.89

    1,24

    1,65

    2.11

    2,77

    3.40

    mm

    inci

    Berat kg / m

    6.35

    1/4

    0,081

    0,109

    0,133

    0,174

    0,212

    9.53

    3/8

    0,126

    0,157

    0,193

    0,257

    0,356

    0,429

    12,7

    1/2

    0,214

    0,263

    0,356

    0,457

    0,612

    0,754

    15,88

    5/8

    0,271

    0,334

    0.455

    0,588

    0,796

    0,995

    19,05

    3/4

    0,327

    0,405

    0,553

    0,729

    0,895

    1,236

    25,4

    1

    0.44

    0,546

    0,75

    0,981

    1,234

    1,574

    2,05

    31,75

    1 1/4

    0,554

    0,688

    0,947

    1,244

    1,574

    2,014

    2,641

    38,1

    1 1/2

    0,667

    0.832

    1,144

    1,514

    1,904

    2,454

    3,233

    44,5

    1 3/4

    1,342

    1,774

    2,244

    2,894

    3,5

    50,8

    2

    1,549

    2,034

    2,574

    3,334

    4,03

    63,5

    2 1/2

    1,949

    2,554

    3,244

    4,214

    5.13

    76.2

    3

    2,345

    3,084

    3,914

    5,094

    6.19

    88,9

    3 1/2

    2,729

    3,609

    4,584

    5,974

    7.27

    101.6

    4

    4,134

    5,254

    6,854

    8.35

    114,3

    4 1/2

    4,654

    5,924

    7,734

    9,43

    Bentuk Tabung: Lurus & U-bend & bersirip & Coiled

    Stainless Steel Tube: A / SA213, A / SA249, A / SA268, A / SA269, A / SA789, EN10216-5, A / SA688, B / SB163, JIS-G3463, GOST9941-81.

    Karbon & Alloy Steel Tube: A / SA178, A / SA179, A / SA192, A / SA209, A / SA210, A / SA213, A.SA214
