ASTM B564 UNS N08020 Alloy Weld Neck Flange ASME B16.5 Alloy 20 WNRF Flange

Detail produk:

Tempat asal:	Tiongkok
Nama merek:	YUHONG
Sertifikasi:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Nomor model:	ASTM B564 UNS N08020 Paduan 20 Flensa WNRF

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Kemasan rincian:	KASUS PLYWOOD / PALLET
Waktu pengiriman:	7 hari
Syarat-syarat pembayaran:	L/C,T/T

Kontak

Semua produk

Pipa Seamless Stainless Steel (290)

Tabung Mulus Stainless Steel (277)

Pipa Stainless Steel Dupleks (127)

Tabung Baja Tahan Karat Dupleks (29)

Tabung jarum (107)

Tabung Sirip (631)

Penukar panas (17)

Tabung Penukar Panas (424)

Paket tabung penukar panas (37)

Lembar Tabung Penukar Panas (116)

penyekat penukar panas (36)

Pendingin udara (8)

Kapal Tekanan (4)

Pipa Las Stainless Steel (57)

Tabung Las Stainless Steel (114)

Nikel paduan pipa (261)

Tabung Paduan Nikel (79)

Tabung paduan tembaga (227)

Tabung Baja Paduan (184)

tabung titanium (10)

Bright Annealed Tube (153)

Tabung Boiler (145)

pemasangan baja (804)

Flensa Baja (590)

Yang lain (391)

Bagian Pelapis (7)

Detil Deskripsi produk

Nama Produk:	Flensa Paduan Nikel	Dimensi:	Flensa ANSI, Flensa ASME, Flensa BS, Flensa DIN, Flensa EN dll.
Standar:	ASTM B564, ASME SB564	Bahan:	UNS N08020, Paduan 20
Ukuran:	1/2 "hingga 48"	Tekanan:	Kelas150/300/600/9001500/2500
Jenis:	Flensa Buta, Flensa Berulir, Flensa Selip, Flensa Las Soket, Flensa Leher Las, Flensa Sambungan LAP	Wajah flange:	FLATE FACE (FF), Raised Face (RF), Joint Tipe Cincin (RTJ)
Aplikasi:	Industri Minyak dan Gas, pengolahan kimia, Teknik Kelautan, dll
Menyoroti:	ASTM B564 Alloy 20 WNRF flange , ASME B16.5 weld neck flange , UNS N08020 alloy steel flange

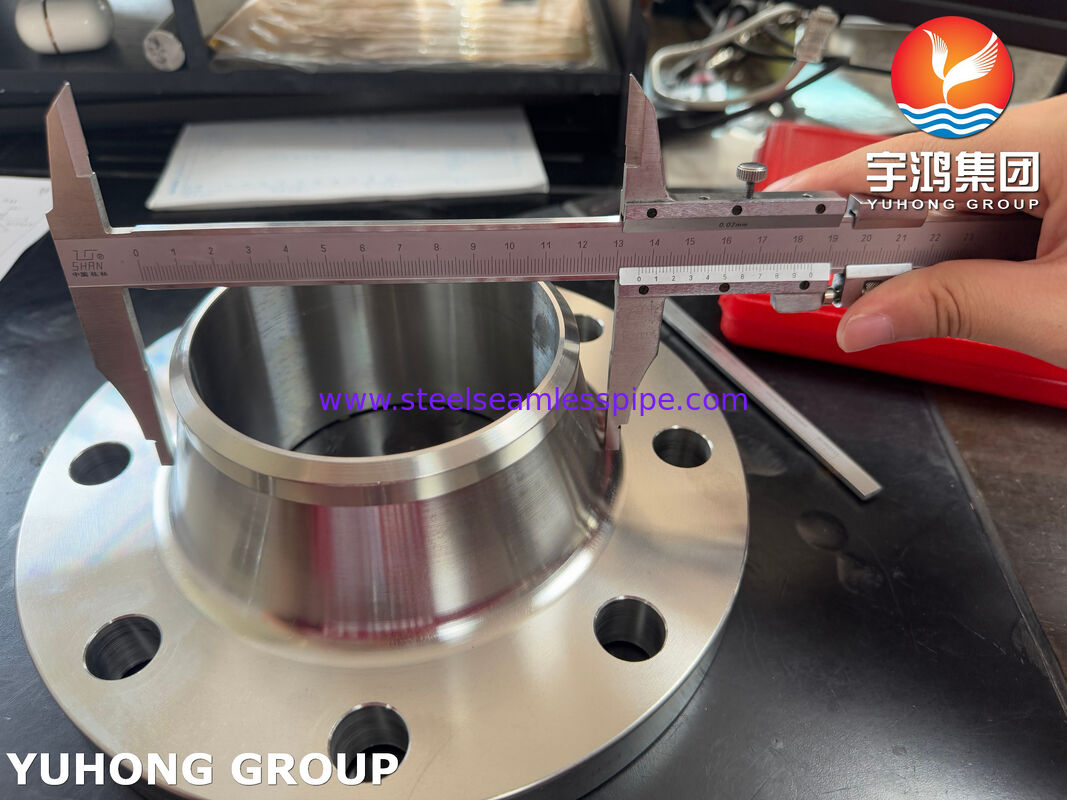

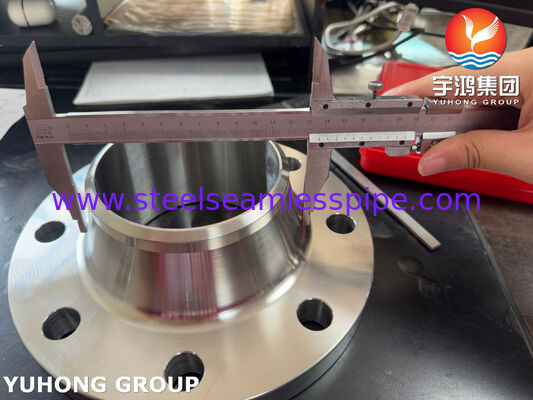

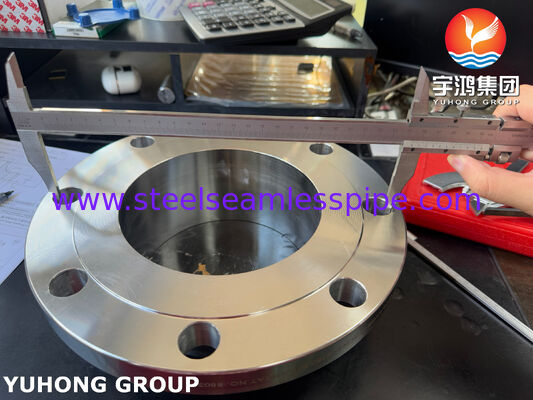

ASTM B 564 UNS N08020 / Alloy 20 WNRF Flange Nickel Alloy Weld Neck Flange

ASTM B564 UNS N08020 / Alloy 20 Weld Neck Flange is a premium, high-integrity piping component designed for the most demanding corrosive and high-pressure services. Its strength, durability, and exceptional chemical resistance make it a critical solution in industries where failure is not an option.

When to Specify Alloy 20? Specify Alloy 20 when you need:

Proven resistance to sulfuric acid and phosphoric acid.
Good general corrosion resistance where 316L is failing.
Resistance to Chloride Stress Corrosion Cracking.
A cost-effective solution that avoids the high cost of more exotic alloys like Hastelloy.

Equivalent Material of ASTM B564 UNS N08020 Flange Alloy 20 Weld Neck Flange

STANDARD	UNS	WERKSTOFF NR.	AFNOR	EN	JIS	BS	GOST
Alloy 20	N08020	2.4660	Z2NCUD31-20AZ	NiCr20CuMo	-	-	-

Chemical Composition (%) of ASTM B564 UNS N08020 Flange Alloy 20 Weld Neck Flange

Alloy 20	Ni	C	Mo	Mn	Si	Fe	Cu	S	P	Cr
Alloy 20	32 - 38	0.02 max	2 - 3	1 - 2	0.7 max	Bal	3 - 4	0.005 max	0.02 max	19 - 21

Mechanical Characteristics of ASTM B564 UNS N08020 Flange Alloy 20 Weld Neck Flange

Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
8.1 g/cm3	1443 °C (2430 °F)	Psi - 35000 , MPa - 241	Psi - 80000 , MPa - 551	30 %

ASTM B564 UNS N08020 Weld Neck Flange Nickel Alloy Flange

Specifications List	ASTM/ ASME B564 / SB564
Standard Flange	BS, DIN, ASME, ANSI, EN
Size Chart	1/2″up to 48″ (15 - 1200NB)
Class / Pressure Rating	PN16, 2500#, PN25, 600#, 150#, 300#, 900#, PN10, 1500#, PN64, PN6, PN40
Flange Type	Weld Neck, Blind, Slip on, Socket, Thread, Long Weld Neck ...
ASTM Standards	DIN, ANSI/ASME B16.48, B16.5, BS4504, BS 10, B 16.47 Series A & B, EN-1092

Key Features & Advantages

Superior Strength in Harsh Environments: The combination of the robust weld neck design and the high-strength Alloy 20 forging makes it capable of withstanding high pressures and temperatures in corrosive service.
Excellent Weldability: The "weld neck" is designed to be butt-welded directly to the pipe, creating a strong, reliable joint. Alloy 20 itself is readily weldable using compatible filler metals (e.g., ER320LR, ENi-6620).
Long Service Life: Its exceptional resistance to a wide range of corrosives minimizes maintenance, downtime, and replacement costs.
Smooth Flow Path: The tapered hub allows for a smooth transition from the pipe to the flange, reducing turbulence and pressure drop

Application

This flange is used in industries where standard stainless steels (304/316) fail due to corrosion.

Chemical Processing Industry (CPI): Reactors, tanks, and piping handling sulfuric acid, phosphoric acid, and other aggressive chemicals.
Pharmaceutical Industry: For processes involving high-purity and corrosive intermediates.
Food and Beverage Processing: Especially in applications with acidic ingredients and chlorinated cleaning agents.
Oil & Gas (Upstream & Midstream): Handling of sour gases (H₂S) and other corrosive wellstream components.
Pulp & Paper Industry: Digesters and bleaching equipment.
Plastic Manufacturing: Plants producing synthetic fibers and polymers.
